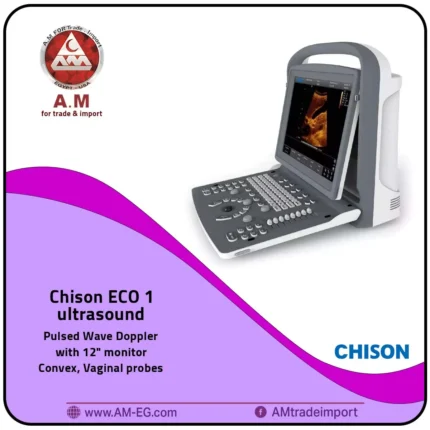

    سونار محمول ECO 1 للعيادات من شركة Chison، شاشة 12 بوصة، مجسات Convex وVaginal، بتصميم عالي الجودة رمادي اللون.
    Chison ECO 1 Ultrasound Machine
    Back to products
    AMS 2M-24 Baby Incubator
    AMS 2M-24 Baby Incubator

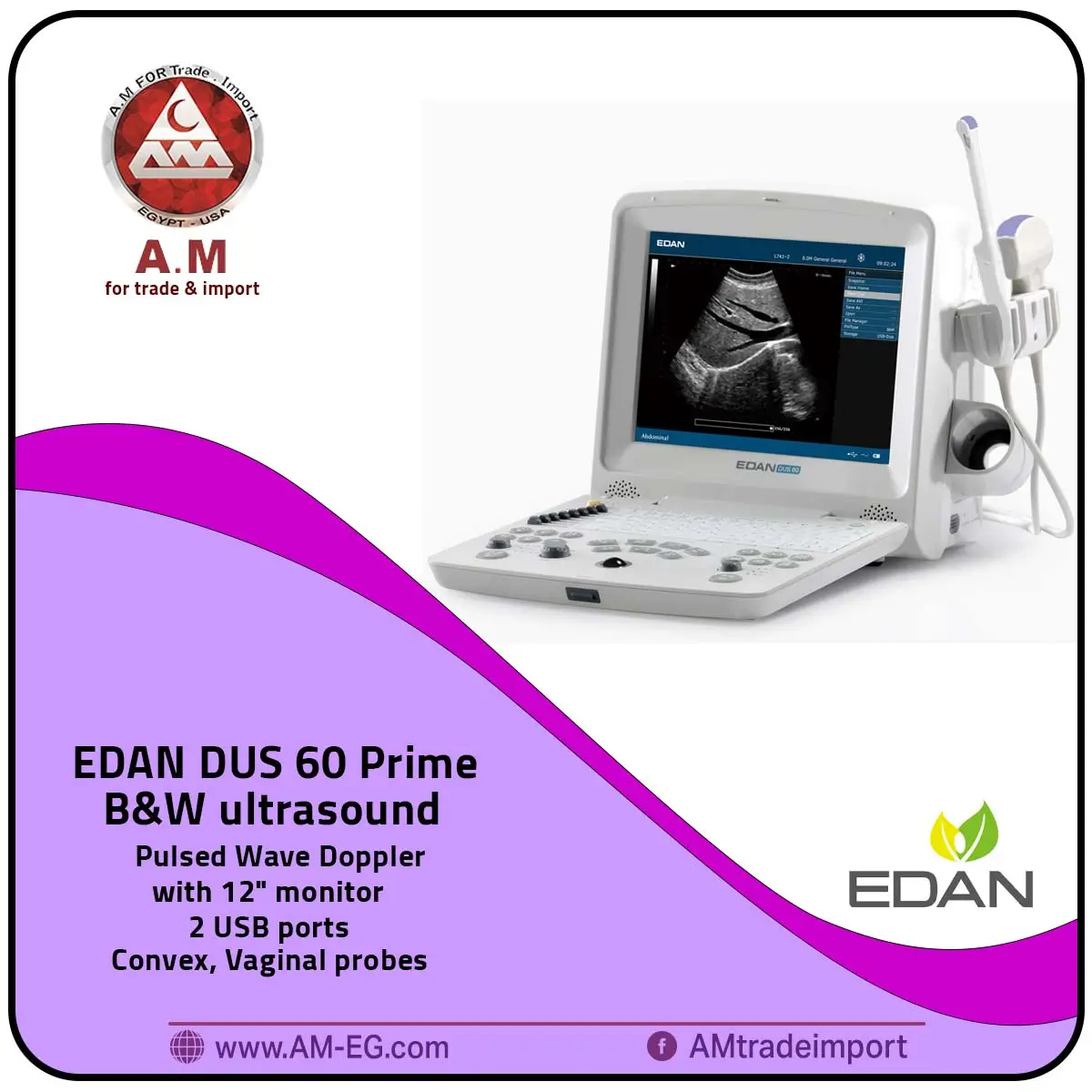

    EDAN DUS 60 Prime Ultrasound Machine

    اطلبه الآن

    • EDAN DUS 60 Prime Ultrasound Machine

    • Doppler

    • Chroma

    • 12-inch movable screen

    • Powerful battery

    • Supports printer connection

    Category:
    Description

    Technical Specifications :

    • 12.1″ TFT-LCD monitor.

    • Transducer Frequency: 2.0-10.0 MHz.

    • Two transducer connectors.

    • Imaging Modes: B, 2B, 4B, B+M, M, and PW.

    Beam Forming Features:

    • Phase Inversion Harmonic Imaging.

    • Multi-Beam Technology.

    • Synthetic Receiving Aperture.

    • Dynamic Receiving Focusing.

    • Real-time Dynamic Aperture.

    • Dynamic Frequency Scanning.

    • Dynamic Apodization.



    • Scanning Depth: 19-324 mm (transducer dependent).

    • Pulsed wave Doppler.

    • Multiple-pseudo-color Imaging.

    • Equipped with an intelligent 8-segment TGC for precise adjustments.

    • 256-frame cine loop memory.

    • 504 MB built-in image storage.

    • Power Supply: 100V-240V, 50Hz/60Hz.

    • Powered by a lithium battery, providing up to 2 hours of continuous operation.

    • Panoramic zoom in real-time and freeze.

    • Ample storage capacity with built-in flash and internal data storage

    • Two USB ports.

    • Measurement & calculation software packages.
