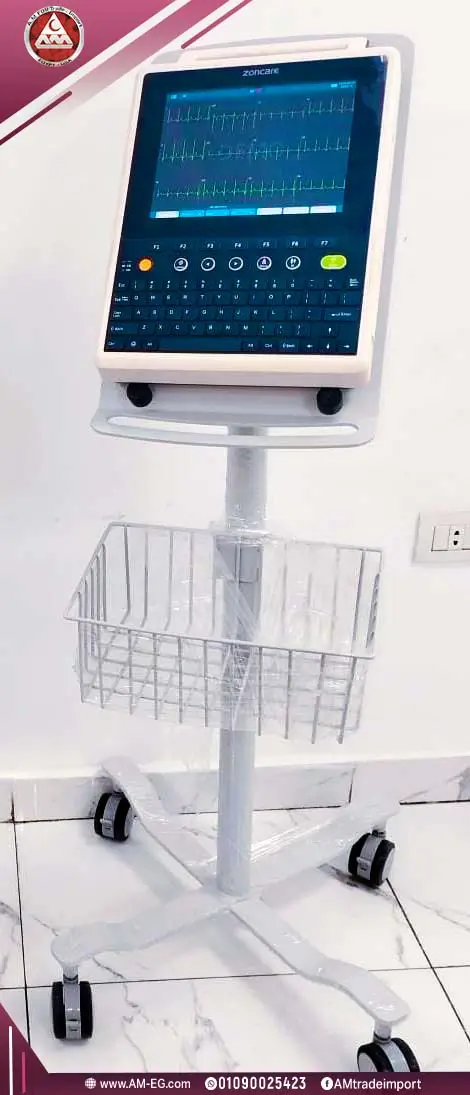

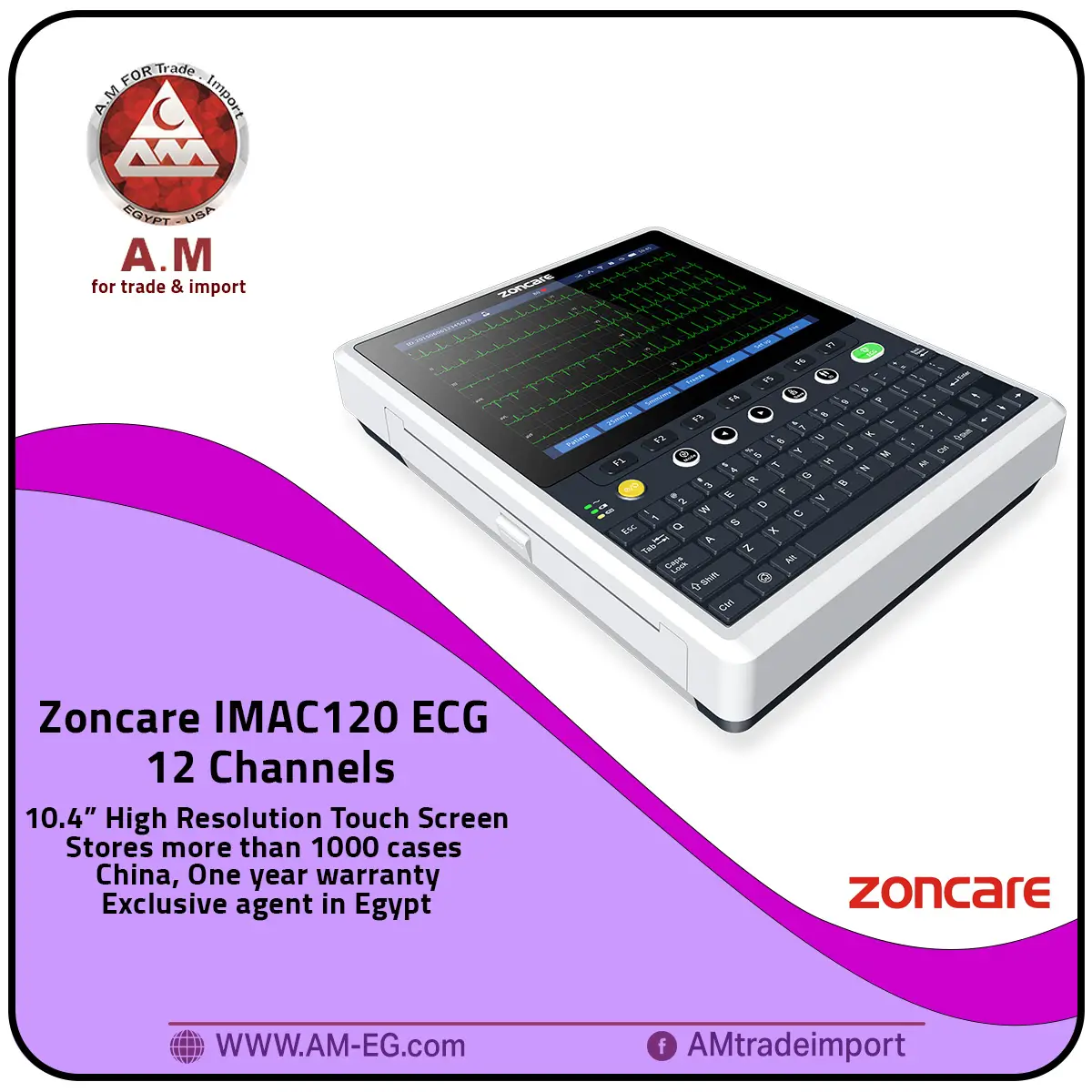

Zoncare 12 Channels ECG iMAC 120
iMAC 120 is classic 12 channel ECG machine. It supports wired way and Wi-Fi to connect Internet. Clinicians could transform ECG reports by connect to the hospital’s information system, such as PACS, HIS, HL7 etc.
iMAC 120 is classic 12 channel ECG machine.
It supports wired way and Wi-Fi to connect Internet. Clinicians could transform ECG reports by connect to the hospital’s information system, such as PACS, HIS, HL7 etc.
- iMAC 120 can be used for Adult, Pediatric and newborn
- 12-lead synchronous acquisition and display
- 10.4inch High Resolution Touch Screen （1024×768）
- Hidden handle design ，easy to carry，support the adjustment of screen angle
- Support physical full keyboard and touch the soft keyboard at the same time, support the keyboard and the handwriting input patient information
- 4400mA Lithium battery, DC>8 hours
- Thermal Print paper: 210/216mm, support A4 paper size print
- Machine Size: (L × W × H) 285mm×360mm×94mm: 3.7kg
- Data stage: 1000 sets
- 32000Hz sampling Rate
- A/D converter: 24 bits
- Frequency Response: 0.01-350Hz.
- Support bipolar pacing detection
- Support lead-off alarm
- Support reanalysis based on modified patient information
Made in China
One year warranty
A.M for Trade & Import is the Exclusive agent in Egypt
Technical Specifications :
10.4 inch High Resolution Touchscreen (1024×768).
12-lead synchronous acquisition and display.
iMAC 120 can be used for Adult, Pediatric and newborn.
Hidden handle design that also functions as an angled stand for better visual when folded ,easy to carry, support the adjustment of screen angle.
Standard configured the Muti-axisTP innovative thermal printer can accurately trace each dot of ECG waveform.
Thermal Print paper: 210/216mm, support A4 paper size print.
Original iFilter adaptive filtering technology greatly improves the ECG signal quality.
Support SD card and USB flash disk for data transfer and management.
Machine Size: (L × W × H) 285mm×360mm×94mm: 3.7kg.
Support a full physical keyboard with the standard QWERTY design that greatly streamlines the workflow
Shortcut keys to simplify the doctor’s operation.
Upload data to ECG management software by LAN or WiFi.
Data stage: 1000 sets.
