Infinite Insight
X-CUBE 90 with Elite, the leadership model of the X+ Architecture platform, has evolved to higher diagnostic confidence.

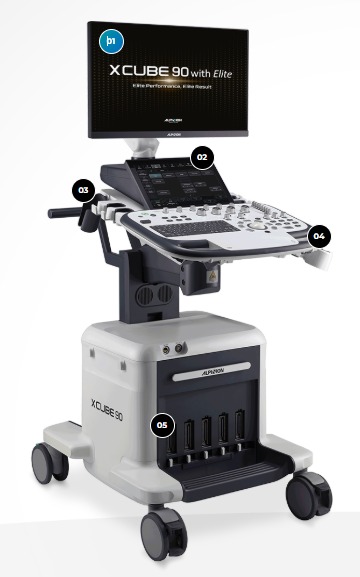

This refinement is achieved through enhanced image performance on a more powerful(or robust) GPU and a immersive experience with its newly designed 23.8” bezel-less monitor.
Advanced X+ Architecture
eXtensive Insight
Powered by X+ Architecture
X+ Architecture is a premium imaging platform created by combining X+ Crystal Signature™, the transducer technology with high sensitivity, wideband, and X+ FIT, ALPINION’s cutting edge beamforming and data processing technology.
The X-CUBE 90 with Elite has undergone a comprehensive system upgrade that integrates advanced image processing technology X+ Focus.
X+ FIT
X+FIT is a beamforming technology which improves resolution, frame rate, and uniformity.
X+ FIT utilizes massive parallel beamforming whose architectures is capable of transmitting 4 times larger volume
with 10 times faster capacity and also processing data 14 times faster than our previous model.
X+ FOCUS
Advanced X+ Focus

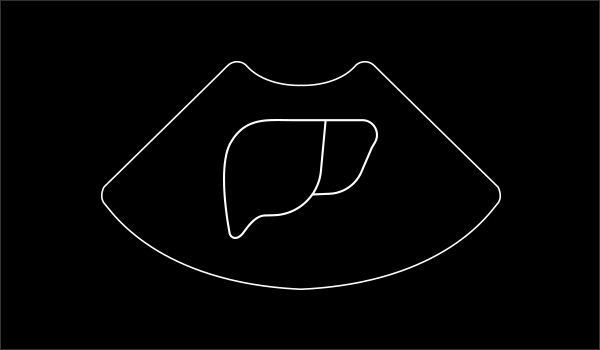

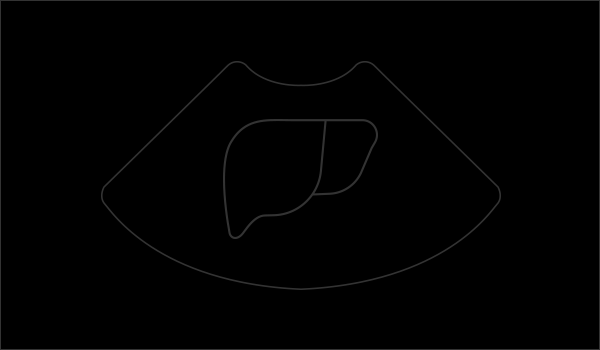

X + Focus is the new image processing technology that displays a clearer images. It brings optimal image quality by enhancing true clinical information and suppressing unnecessary noise and other artifacts.
Advanced X+ Focus technology, integrated into the X-CUBE 90 with Elite, elevated the level of image performance in terms of Resolution, Penetration, and Uniformity through an evolved SRI library, optimized INV mode, and special image processing algorithm.
X+ Crystal Signature
X+ Crystal Signature™ applies single crystal design plus Alpinion’s custom materials within the transducer design to achieve excellent clarity of image quality.
X+ Crystal Signature transducer
SL3-19H
X+ Crystal Signature transducer
SVC1-8H
- Sensitivity & Penetration
- X+ Crystal Signature technology applied
- new Single crystal and Special materials
- Frame rate
- X+ FIT's multi-beam receiving technology
- Spatial Resolution
- X+ FIT's beamforming technology based on
- X10 data transmission speed
- X14 data processing speed
* Compared to our previous model(E-CUBE 15 Platimum)
eXpanded Capability
Intelligent clinical technologies advance diagnostic accuracy to new levels.
Broaden your diagnostic skills and interpretations with advance imaging techniques.
Take your practice to the “cutting edge” of Ultrasound.
ATI(Attenuation Tissue Imaging)
The ATI quantifies the attenuation to measure the level of steatosis with color-mapped image. The ATI provides quickly calculated value with high reproducibility for diagnosis efficiency. Nonalcoholic fatty liver(NAFLD) is the most common cause of liver dysfunction, with a prevalence of up to 20% of the total population in world wide.
SWE(Shear Wave Elastography)
Shear Wave Elastography evaluates tissue stiffness. This non-invasive and advanced tool provides quantitative assessment for chronic liver disease and suspicious nodule of Thyroid and Breast. The reliable and reproducible result of SWE helps to increase diagnostic confidence.

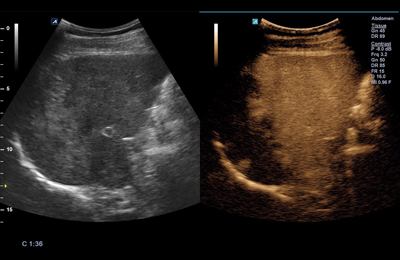

CEUS(Contrast-Enhanced Ultrasound) with TIC
This is a function to diagnose patients using various angiographic patterns that appear while a contrast medium, administered intravenously, diffuses in blood vessels and organ tissue. CEUS has many advantages in various clinical indications for liver disease. In addition, Time Intensive Curve(TIC)-analysis available with CEUS is a quantitative tool for the dynamic evaluation of target lesions.

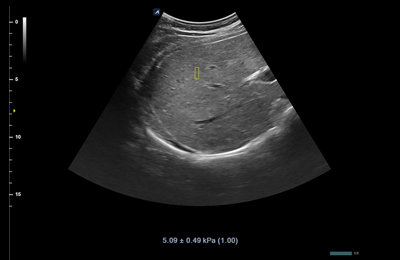

X+ pSWE
Point Shear Wave Elastography shows objective quantified stiffness of tissue using the radiation force from a focused ultrasound beam. Users can identify significant liver fibrosis non-invasively, so it reduces unnecessary biopsies and increases patient satisfaction. X

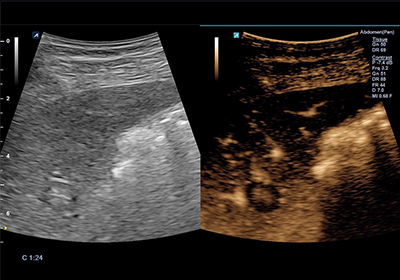

CEUS(Contrast Enhancement Ultrasound)
This is a function to diagnose patients using various angiographic patterns that appear while a contrast medium, administered intravenously, diffuses in blood vessels and organ tissue. CEUS has many advantages in various clinical indications for liver disease.

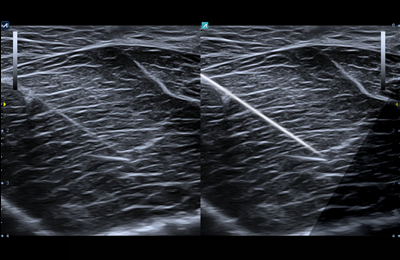

Needle Vision™ Plus
Improved needle visualization with linear transducers. Additional beam steering, with 3 selectable positions, enhances the position and visualization of the needle as it advances through anatomy. This needle enhancement function results in accuracy and safety with procedures.

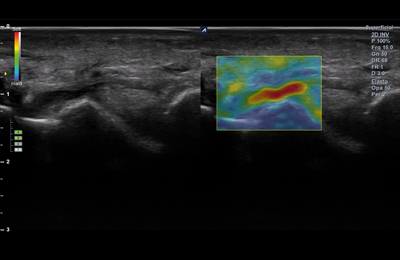

Elastography
Elastography is ultrasound imaging technology that reveals relative elasticity of tissues against external pressure. In parallel, relevant pathological information is offered to help reduce unnecessary biopsy. Pressure level on tissues can be monitored real time with an indication bar marked with its scale of one (1) to six (6) to enhance credibility of results.

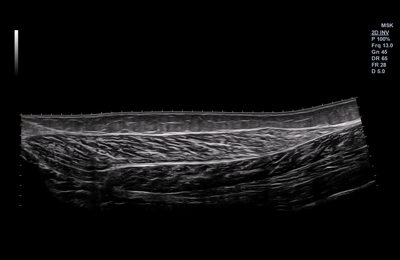

Panoramic
Panoramic Imaging offers a horizontal image with an extremely extended field of view.

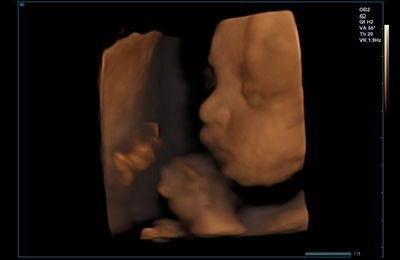

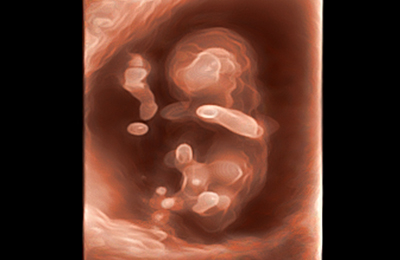

Silhouette imaging
New technology provides transparent outlines of a rendered structure, like a fetus. Live HQ™, technology using a light source to create shadowing effects, combined with Silhouette allows definition of anatomy underneath the surface. “Glass-like” surface allowing the display of anatomy within the structure.

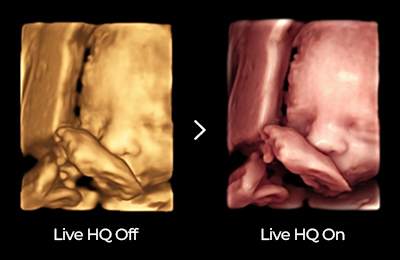

Live HQ
The combination of qualified 3D/4D transducers with strong performance reliability and geometrical accuracy enables ALPINION’s Live HQ™ software to render a realistic fetal shape.

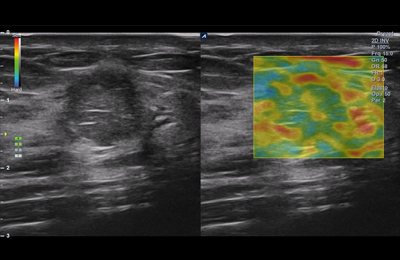

Elastography
Elastography is ultrasound imaging technology that reveals relative elasticity of tissues against external pressure. In parallel, relevant pathological information is offered to help reduce unnecessary biopsy. Pressure level on tissues can be monitored real time with an indication bar marked with its scale of one (1) to six (6) to enhance credibility of results.

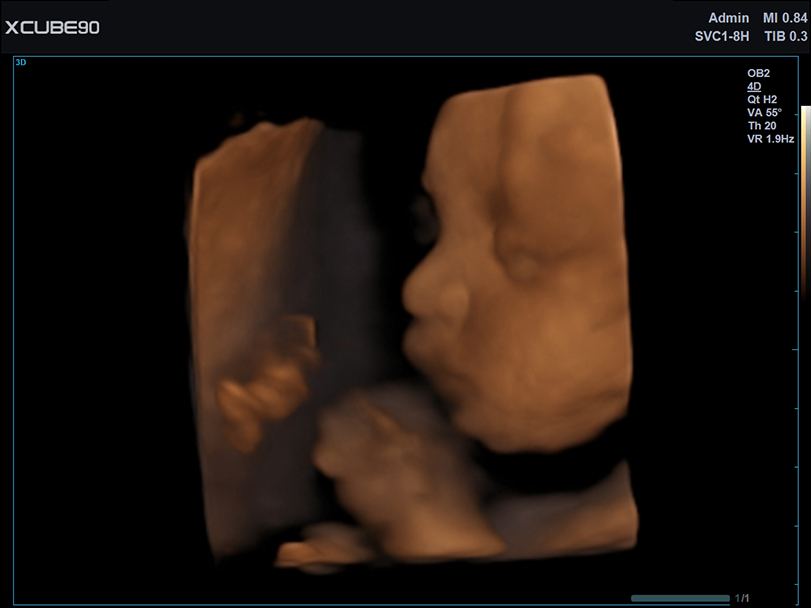

Depth View
Rendering mode that gives a three-dimensional effect by applying color according to the depth in direction depth from the view point.

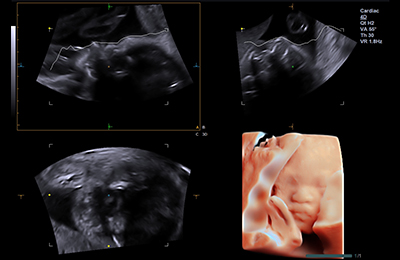

Clear Face
Clear Face detects a fetal face automatically and it removes structures that cover fetal face such as cord, placenta, uterus. It allows users to acquire clear view with simple operation.

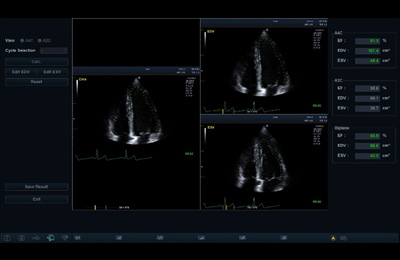

AutoEF
Auto EF evaluate and measure contraction of the left ventricle by automatically calculating Ejection Fraction (EF). In addition to EF, this function also provides ESD and ESV information to display volume change of the left ventricle. Data can be obtained without user control by automatically detecting the boundary line of the endocardium.

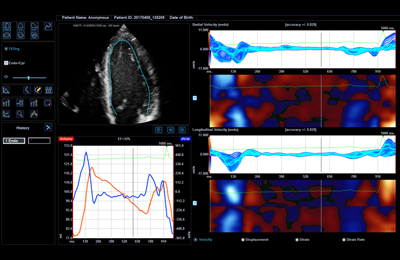

CUBE Strain ™
With Alpinion’s phased array transducers that implemented X+ Crystal Signature technology, more clarity in images is achieved, and with use of the functions, early diagnosis of cardiac disorders can be made possible.

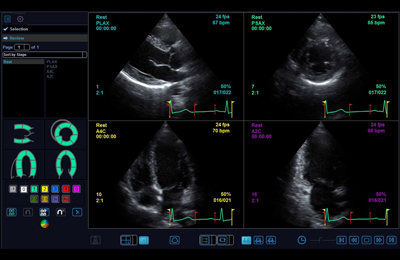

Stress Echo
Stress Echo offers an accurate diagnosis of cardiac disorders by quantifying myocardial deformation.

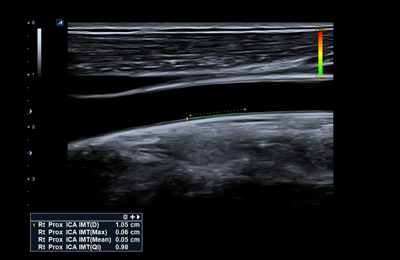

Auto IMT
Auto IMT allows you to automatically measure intima-media thickness of carotid arteries. It enables more reliable and reproducible assessment.
eXpanded Care
The detailed work process designed by X-CUBE 90 with Elite cares beyond realizing a more efficient working environment for medical professionals. Intuitive directions improve efficiency for medical professionals, and the transducer design provides comfort for the patient, thereby improving the quality of diagnoses.
X+ Assistant
X+ Assistant is customized, complete, exams utilizing scan technologies, image layout, text, and calculations automated for the reduction of keystrokes by approximately 50% per examination. Improves productivity and reduces errors during the exam. A user may create protocols for all of their sonography exams, if desired.
X+ Auto Biometry
When measuring Estimated Fetal Weight(EFW),
the smart recognition algorithm allows you to automatically
identify a structure of interest, and measure fetal head
circumference (HC), biparietal diameter(BPD), femur length
(FL), abdominal circumference (AC) and Humerus.
X+ Compare
This is a feature that allows users to import patients’ previous
study from a PACS server or hard disk and compare when scanning and reviewing. X+ Compare can be used not only in scan mode, but in review mode (E-View) as well.
* X+ Compare supports ultrasound studies only.
USB Real-time recording
USB real-time recording makes data transfer easier by
allowing users to record ultrasound scan images on USB
memory in real time. Videos are recorded as high-definition
and stored in system quickly.
Transducer Technology
The primary data source for the creation of ultrasound images.

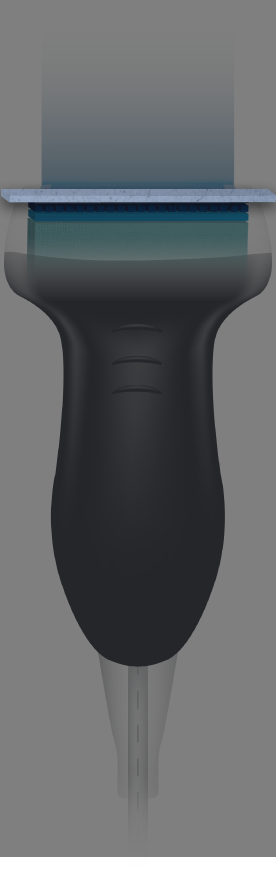

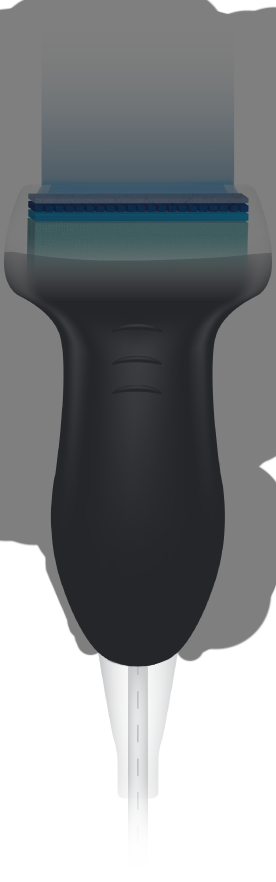

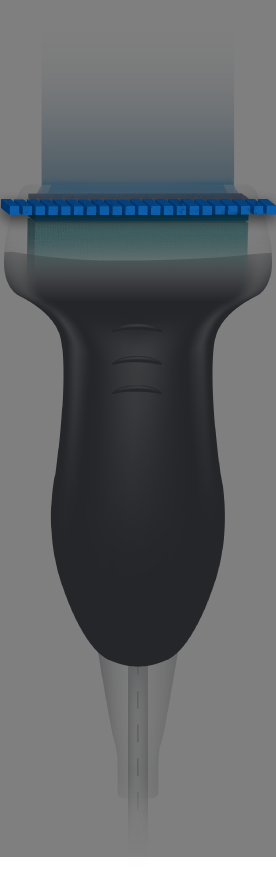

X+ Crystal Signature™
The key to transducer technology is the process of generating a highly sensitive wideband acoustic signal, receive it without any loss; and, to convert it to a digital signal. ALPINION MEDICAL SYSTEMS has researched and developed the core technology of transducers and X+ Crystal Signature is the accomplishment of all the innovative technologies we’ve accumulated.

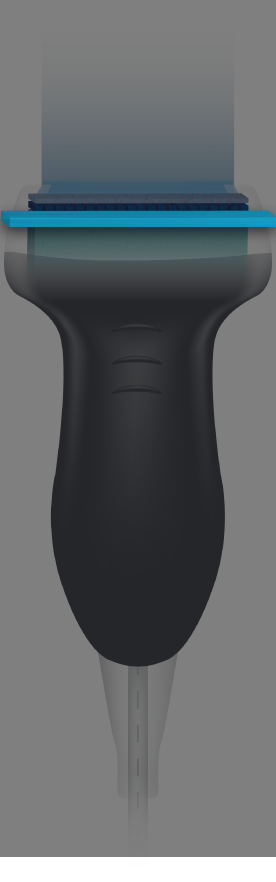

We use a special material to increase the penetration efficiency of the acoustic power, thereby improving sensitivity and bandwidth.
The upgraded single crystal features improved transmissivity of the ultrasound and produces high-resolution images.
Its unique structure increases ultrasound penetration efficiency and makes it possible to reach deeper tissue.

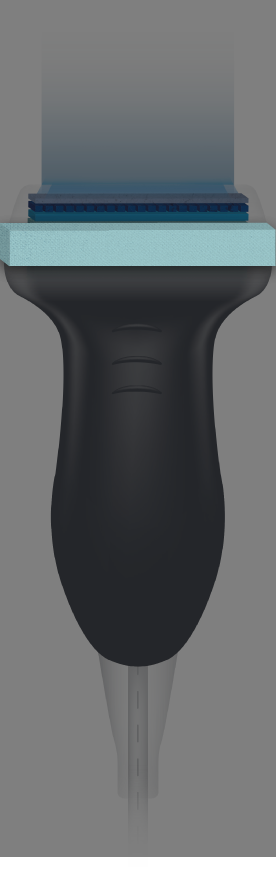

ALPINION’s special material minimizes signal loss and maximize heat dissipation with our special material.
* Thermal conduction efficiency increased 3.5 times compared to our previous product
High performance low loss cable transmits high sensitivity signals to achieve optimal impedance matching with the system.

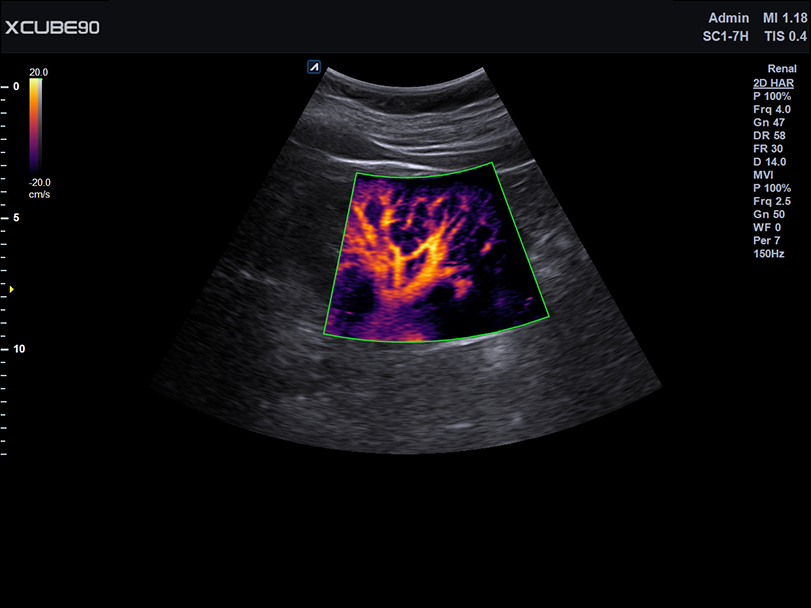

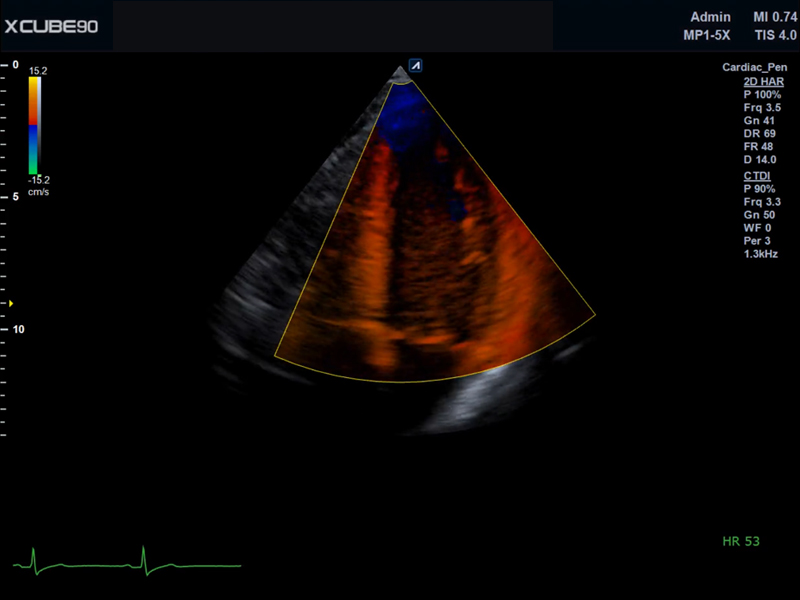

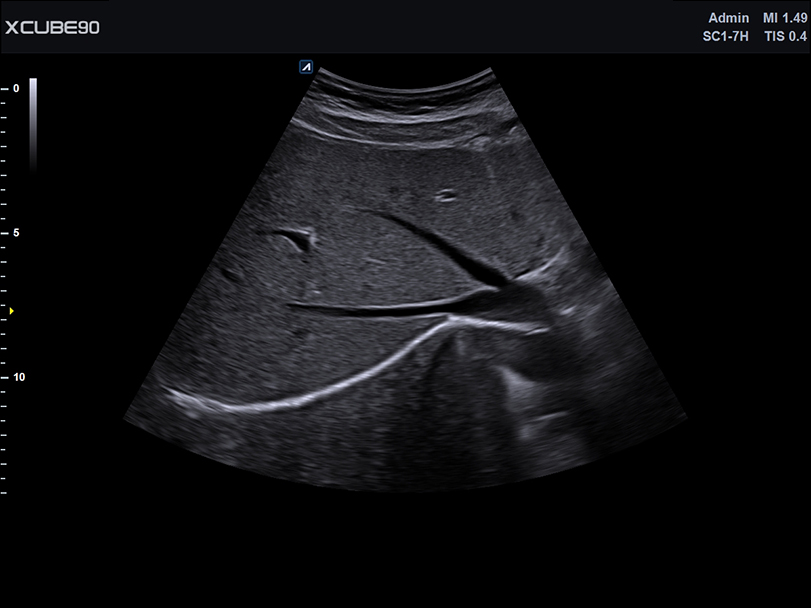

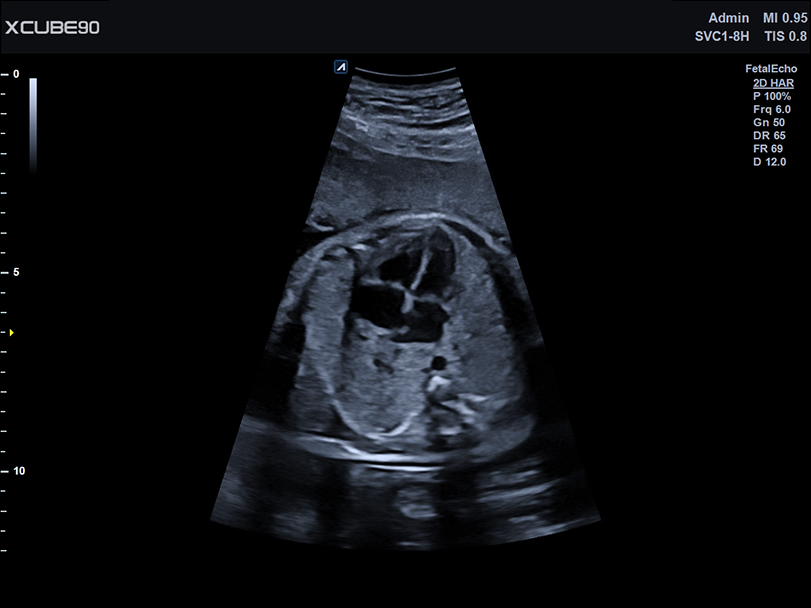

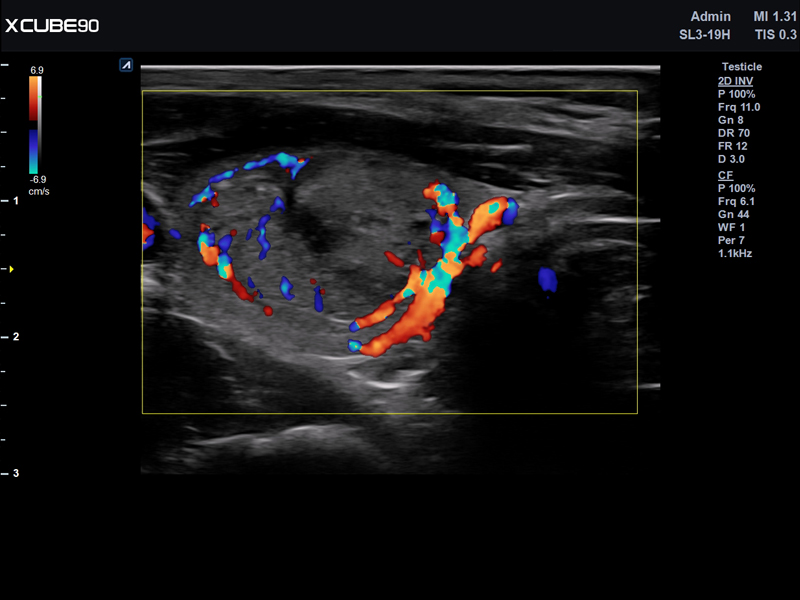

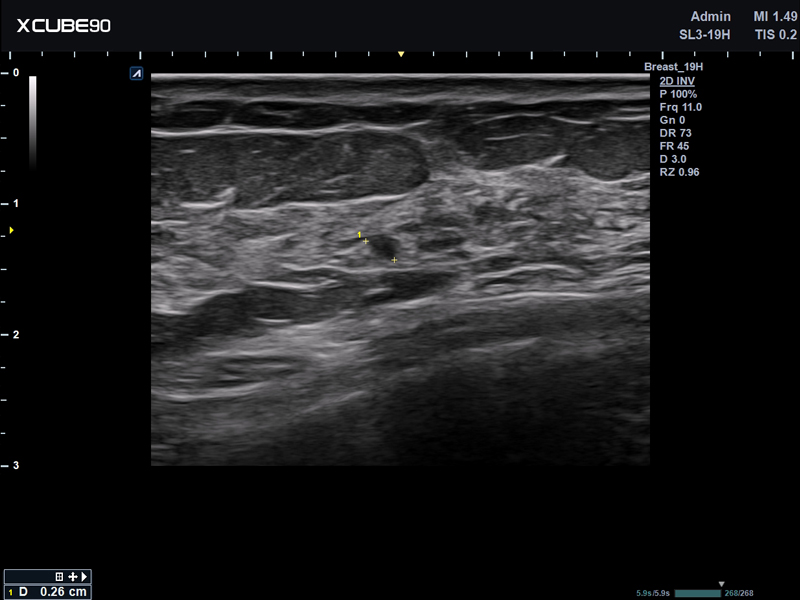

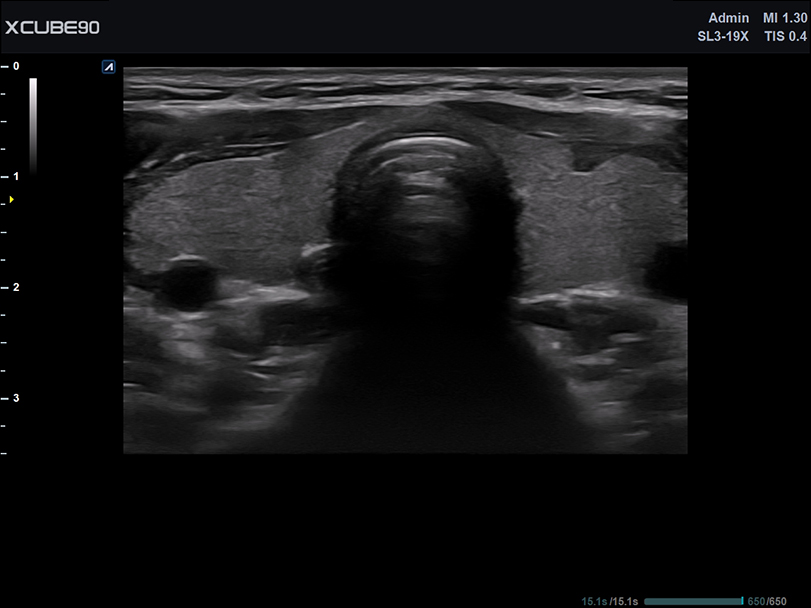

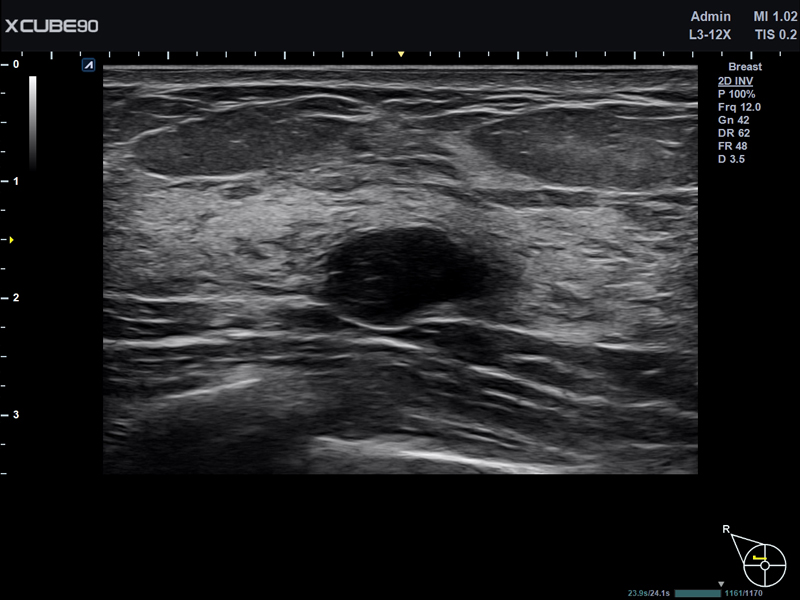

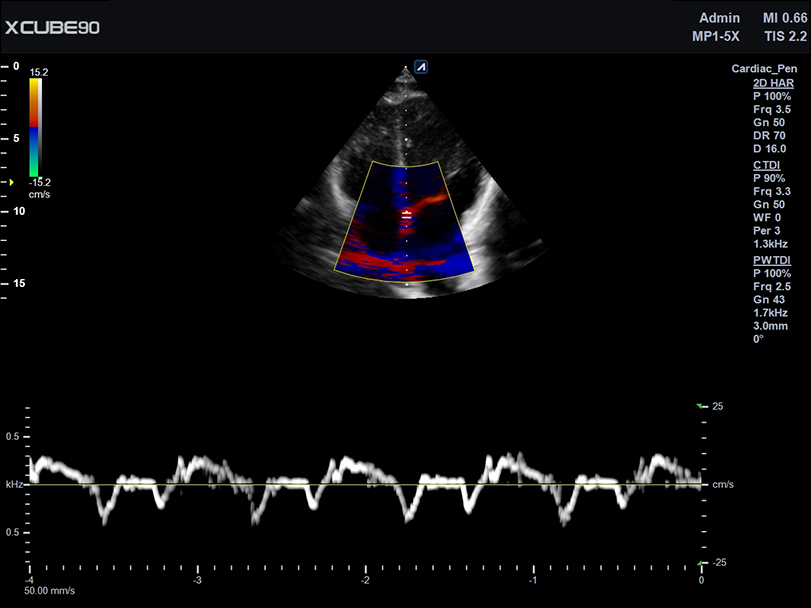

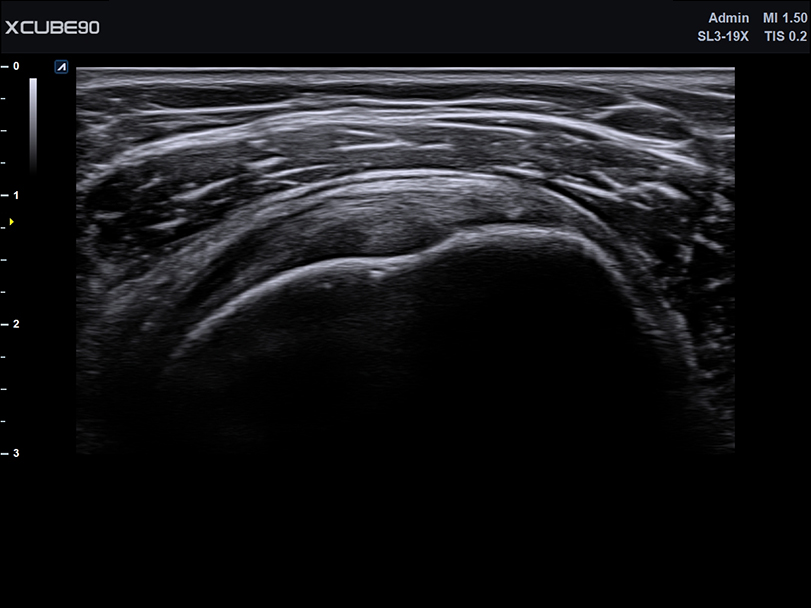

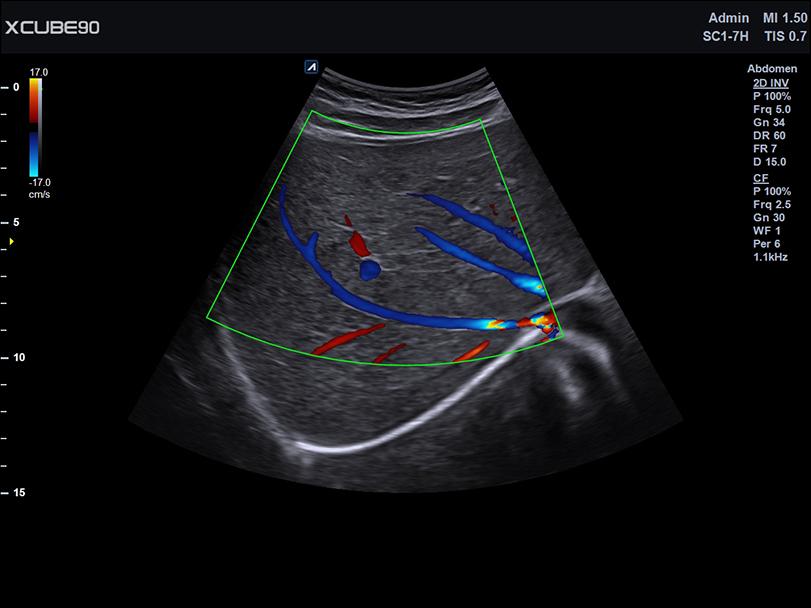

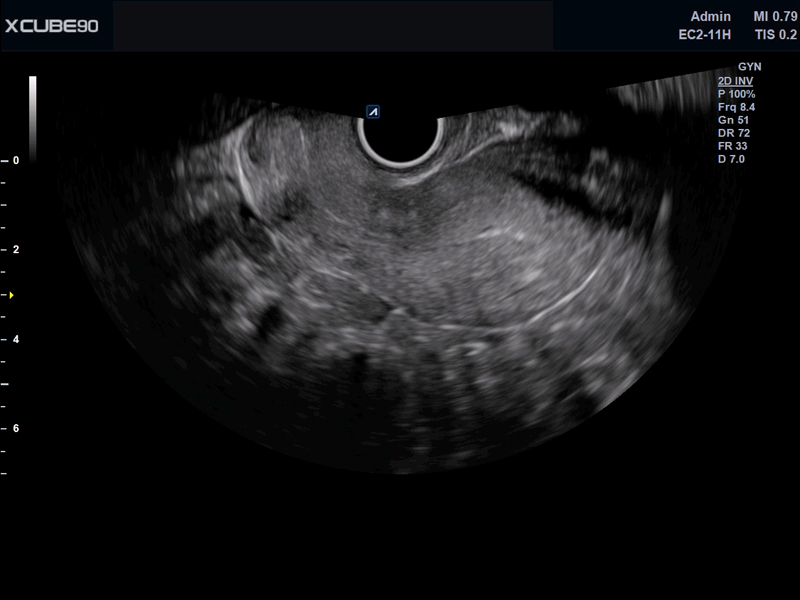

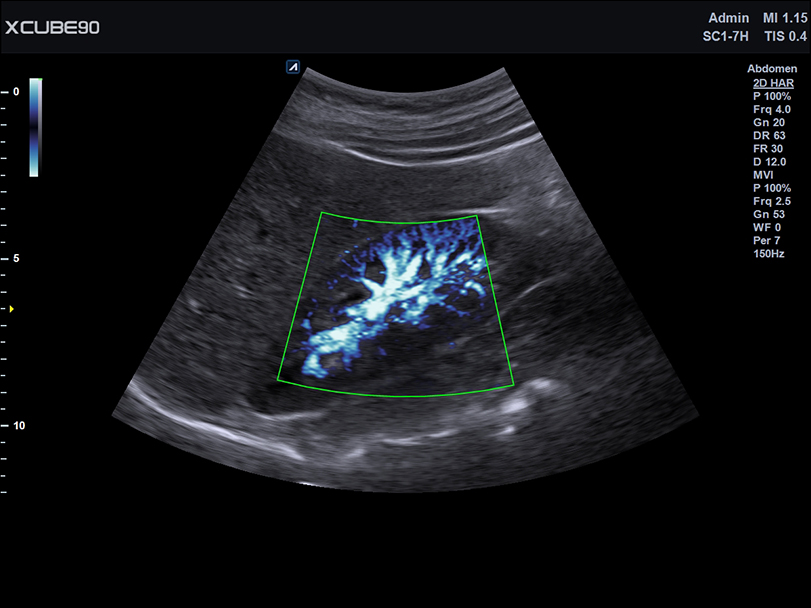

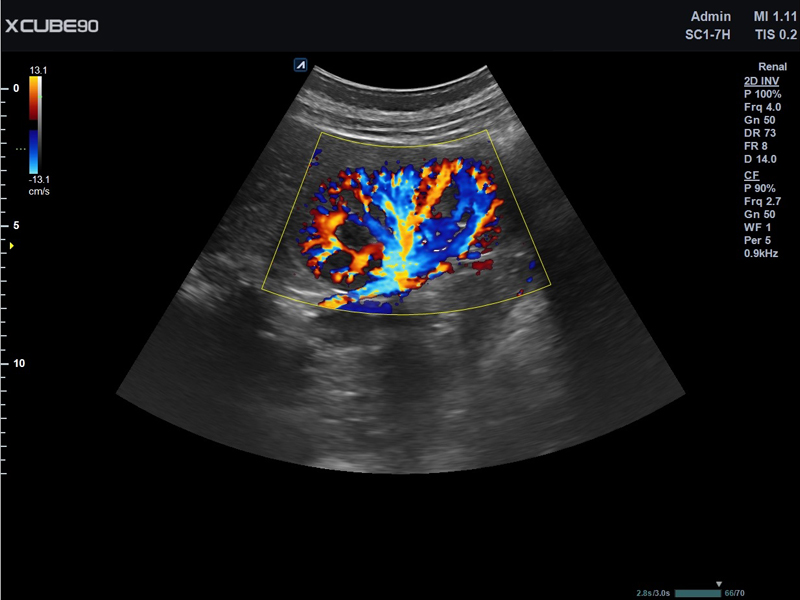

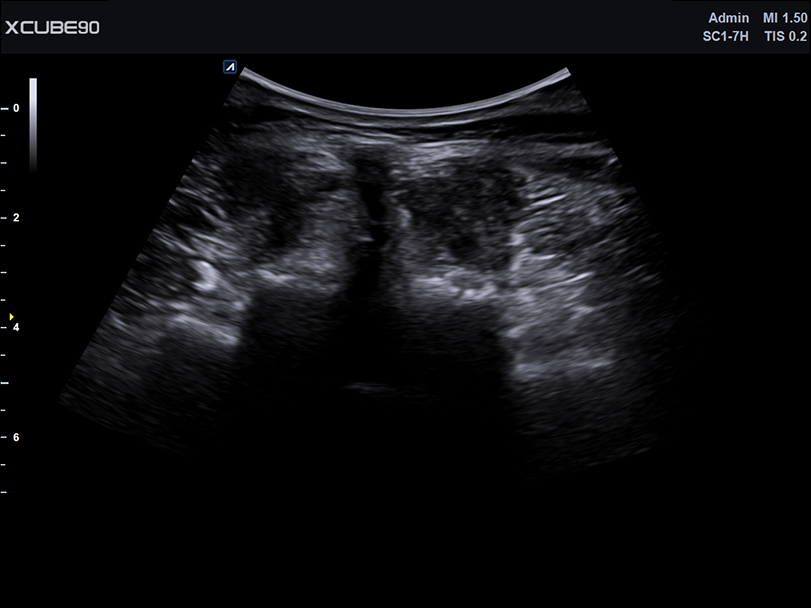

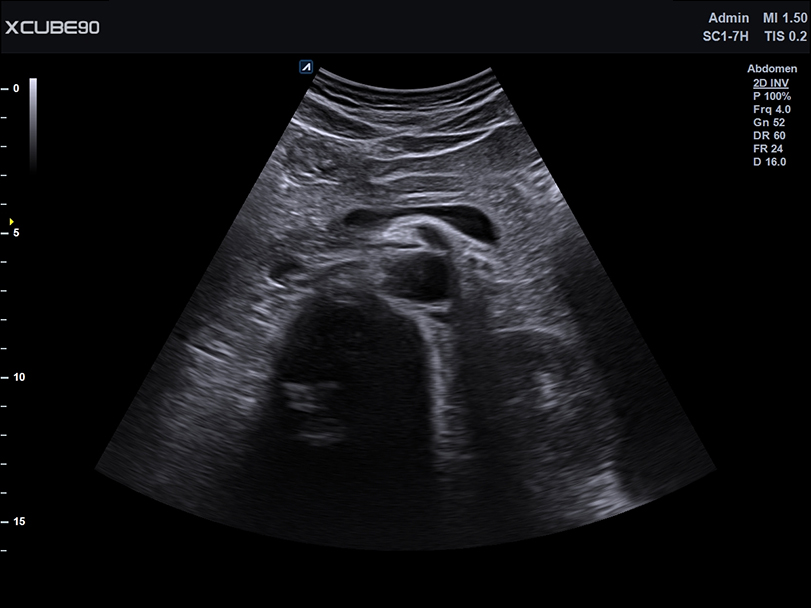

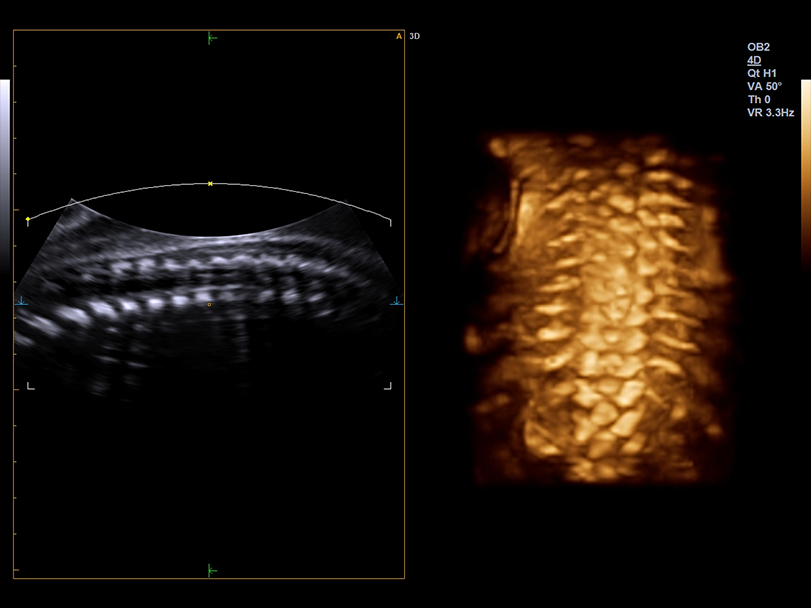

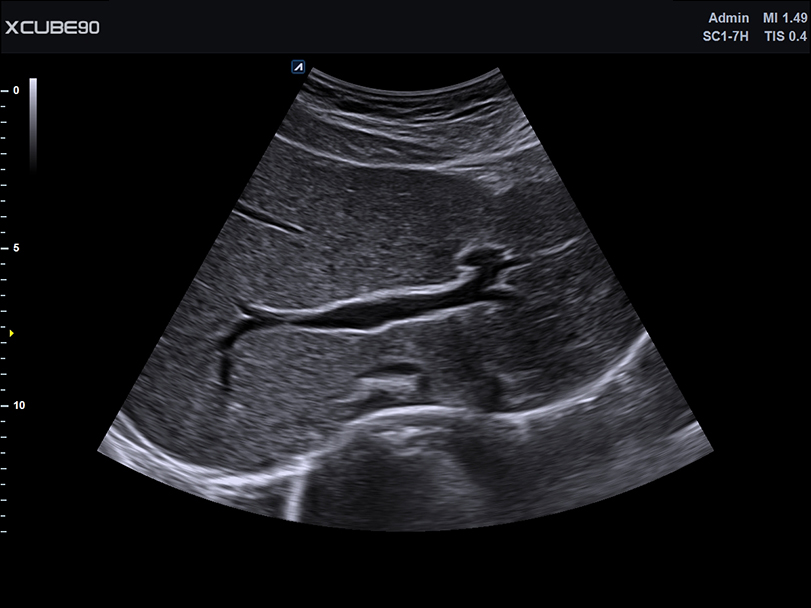

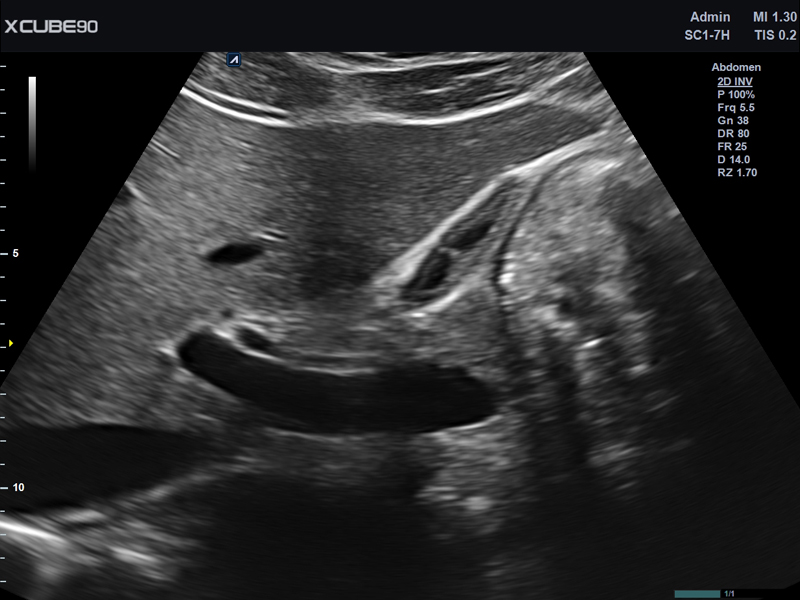

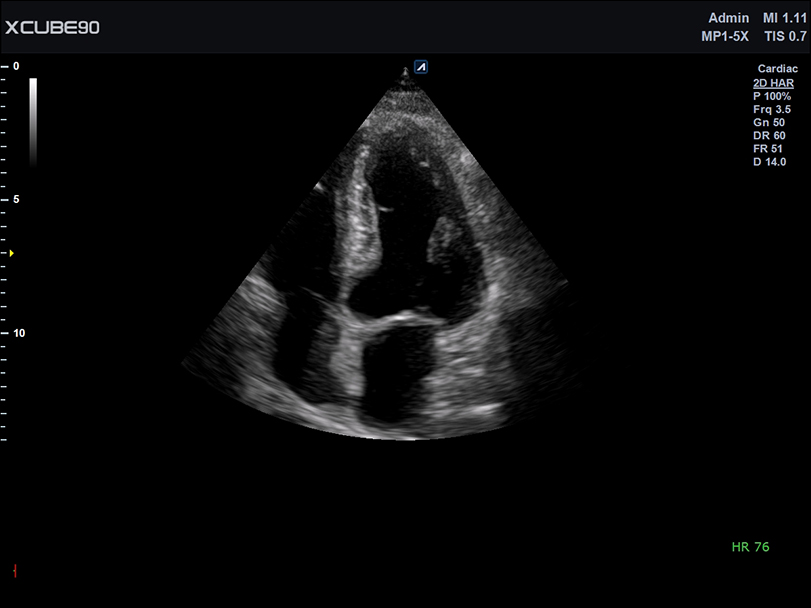

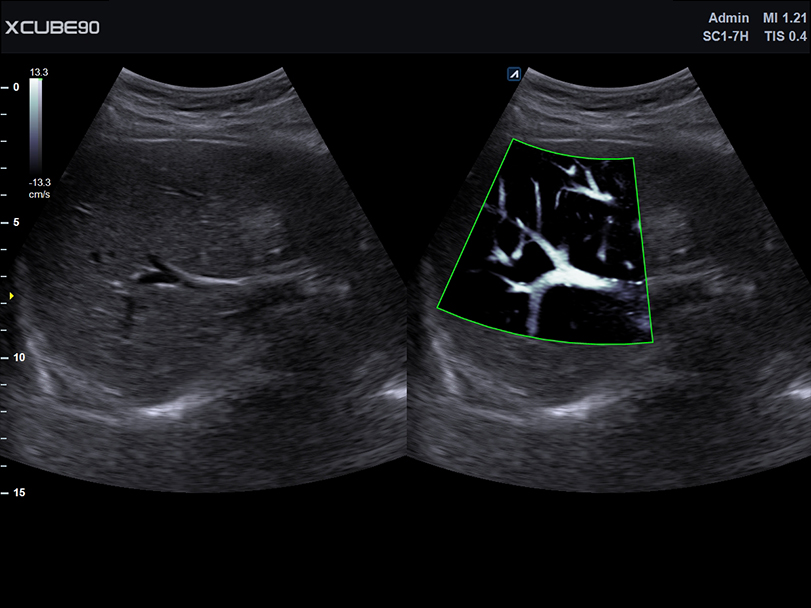

Clinical Image
Intuitive design
for your daily practice

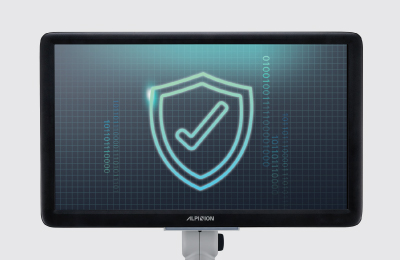

Antivirus Solution
As its automatic virus scanning function is activated whenever the system boots, patients’ information is more securely protected.

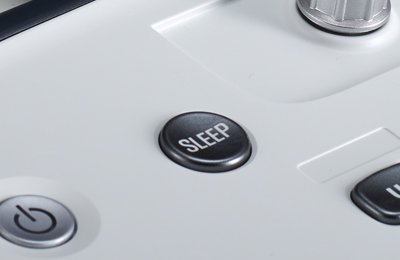

Time saving solution
The built-in battery guarantees mobility while it is in use and Sleep mode helps the system boot up faster.
Compact Size & Weight
Its compact size and light weight measuring 85 kg provides great mobility.

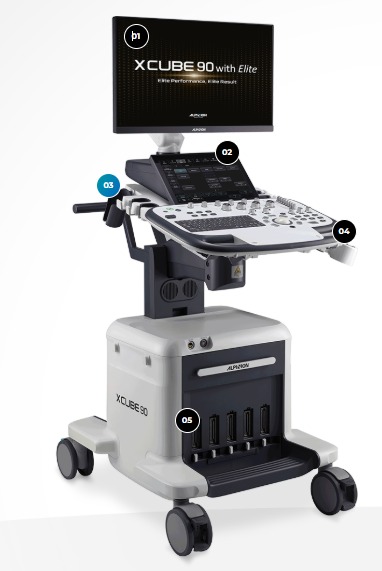

Design & Ergonomics
Enjoy a larger widescreen and clear, high definition images.

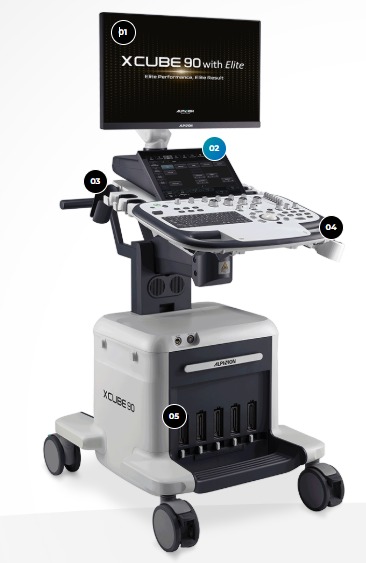

We’ve combined angle adjustment functionality with its larger, full-color touch panel to maximize user convenience
Ergonomic design helps to promote healthy posture, which reduces musculoskeletal pain.

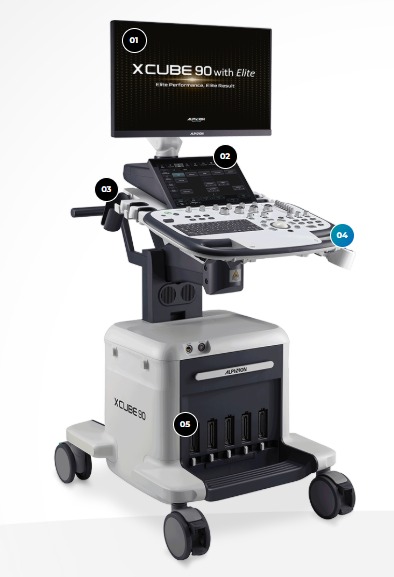

The control panel may be easily adjusted vertically as it is motorized.

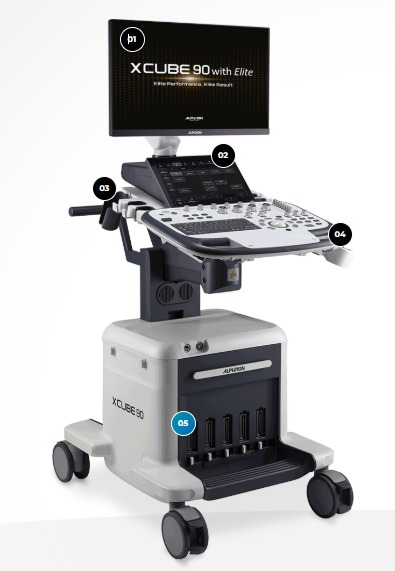

You may use a variety of transducers as required with no need to replace them, and thus saving time during conducting diagnosis
- Alpinion X-CUBE 90 with Elite
- Made in Korea
- Two Years Warranty
- Exclusive Agent in Egypt: A.M for Trade & Import
- For more details kindly Contact us:
