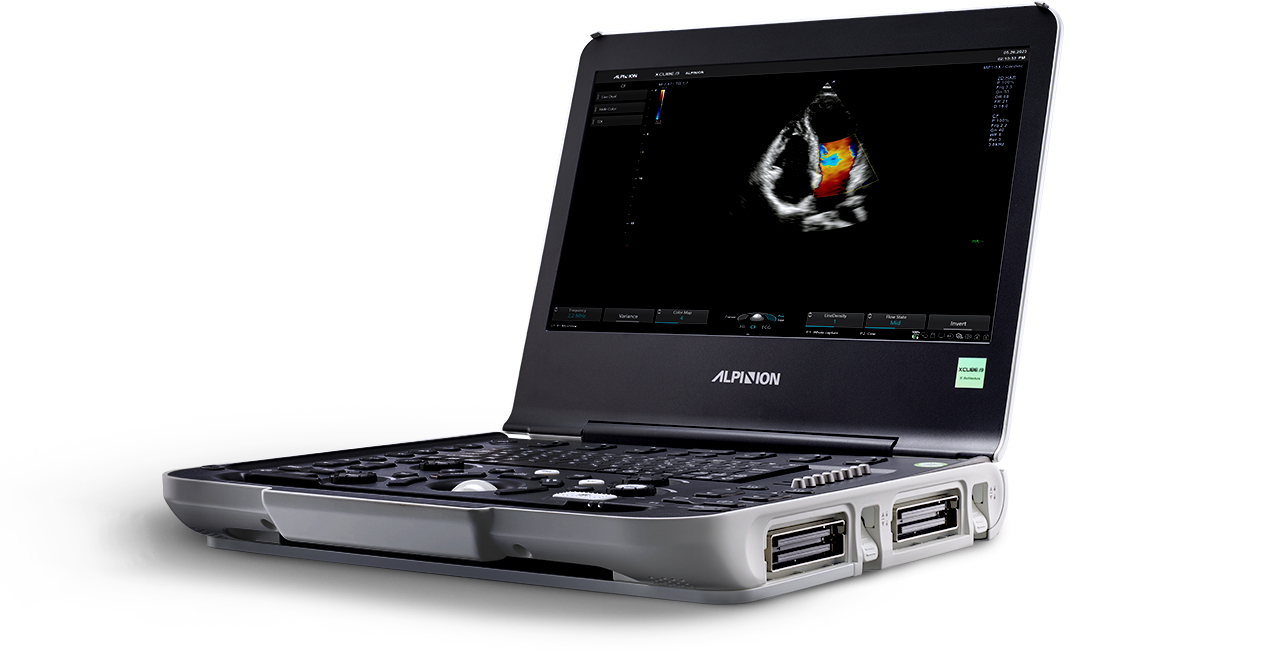

Experience a versatile ultrasound solution for the modern healthcare environment.
The X-CUBE i9 offers optimum mobility, intuitive workflow, intelligent clinical applications, and efficient diagnostic solutions.
Innovative healthcare professionals can achieve new heights in patient satisfaction with best-in-class imaging clarity and accuracy to confidently support each critical diagnosis with maximum viewing and data interpretations.

X-CUBE i9 frees you from time and space constraints

and helps you focus more on your patients. Long-lasting batteries and dual transducers provide flexibility in the examination

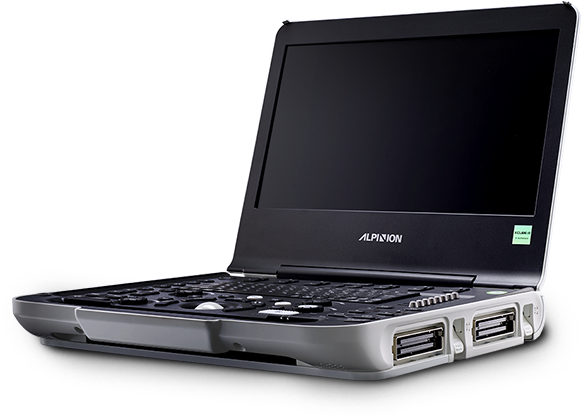

Dual Transducers

2active transducer connectors
(Second connector optional)

Double Up Your Efficiency

With dual batteries and transducers



Dual Batteries

2built-in batteries
(Second battery optional)

Long-lasting dual batteries

Standby mode: Max 100 hrs.
Continuous scan: Max 60 min .

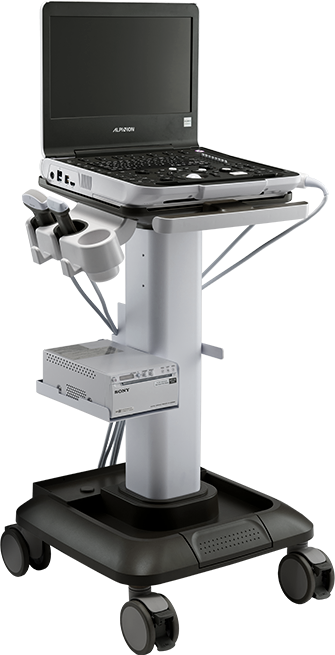

Easy Control Cart

Easy adjustment of height: 848 ~ 998mm Smooth and silent gas lift cylinder

Excellent Imaging Quality For Versatile Diagnostic Performance

Powered by X+ Architecture, innovative imaging algorithms

and efficient diagnosis workflow to effectively support the diverse range of clinical settings with crystal clear imaging quality.
The ultrasound acquisition process enhanced by the signal obtained with the X+ Crystal Signature, a highly sensitive broadband transducer and the high-resolution images generated by the X+ FIT technology, a large-capacity dataprocessing, provide a high-resolution image.

X+ FIT

The sophisticated parallel beamforming technology X+ FIT improves contrast and uniformity for excellent resolution by transmitting, receiving and processing a large amount of data

X+ Crystal signature

With the use of an upgraded single crystal material, it improves transmittance. In addition, Alpinion’s innovative backing material minimizes signal loss, improving penetration and image quality.

Expand Flexibility
And Adaptability

X-CUBE i9 frees you from time and space constraints and helps you focus more on your patients. Long-lasting batteries and dual transducers provide flexibility in the examination and

the intelligent options help the fast examination and the guide function, which reduces the dependency on operators and maximizes efficiency.

Power Preset

Users can load a system preset saved in advance with a single button click. By using these quick and easy presets, users can shorten the imaging set up time.

XpeedTM

Simply press the Xpeed™ button once to quickly optimize images in 2D Mode and Spectrum Doppler Mode. Detect, predict, and adjust the Dynamic range level in real-time

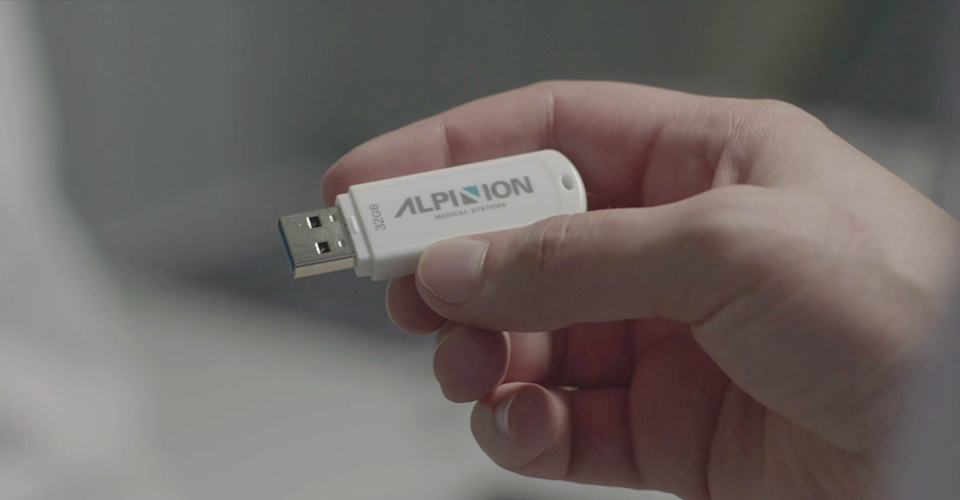

USB Real-time recording

USB real-time recording makes data transfer easier by allowing users to record ultrasound scan images on USB memory in real time. Videos are recorded as high-definition and stored in system quickly.

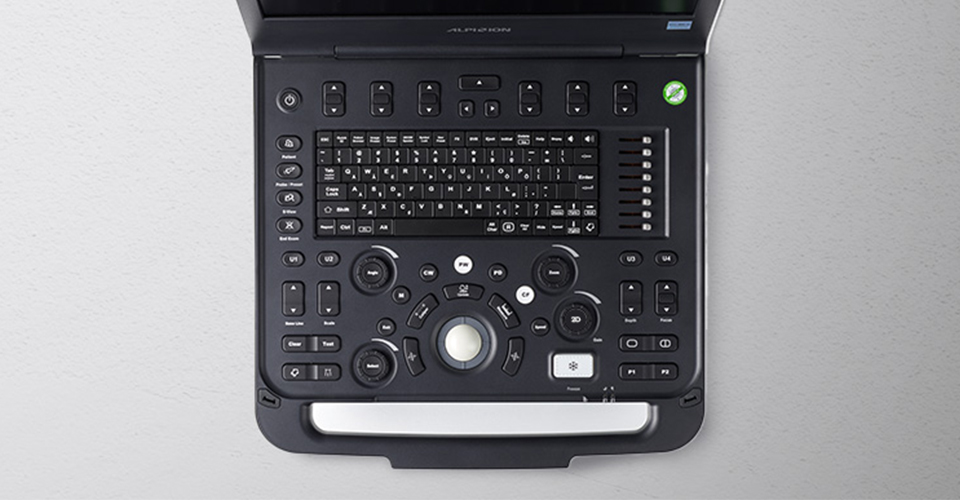

Intuitive user interface

The intuitive user interface design using icons and illustrations makes it easy to use even for users unfamiliar with ultrasound devices.

Group annotation

Color classification helps recognize preferred text at each exam. In addition, users can set the text replacement from grouped annotations to enhance intuitive use.

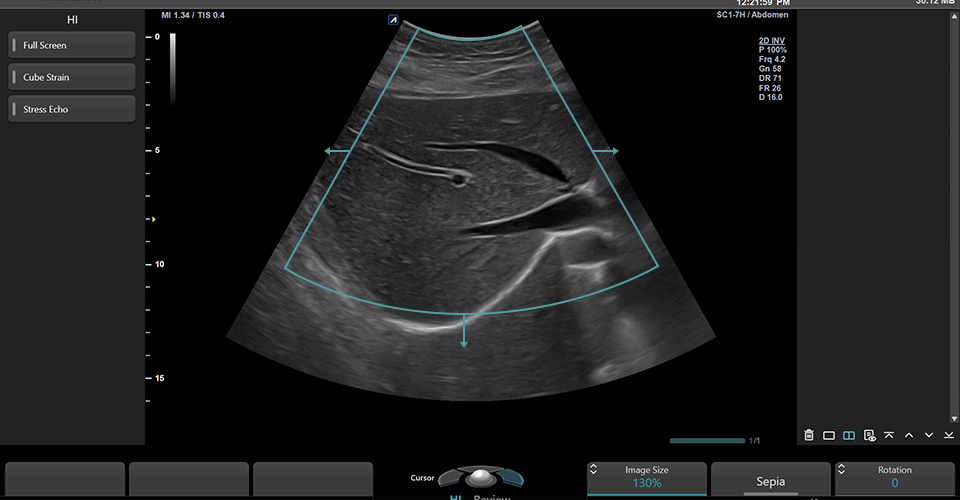

Adjustable image size

Image size can be adjustable (70%~130%) from original image size without image quality decrease.

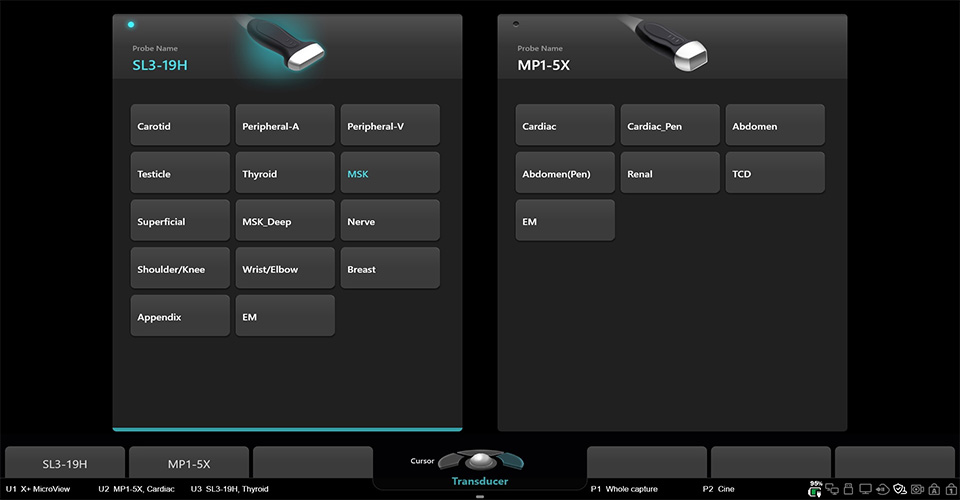

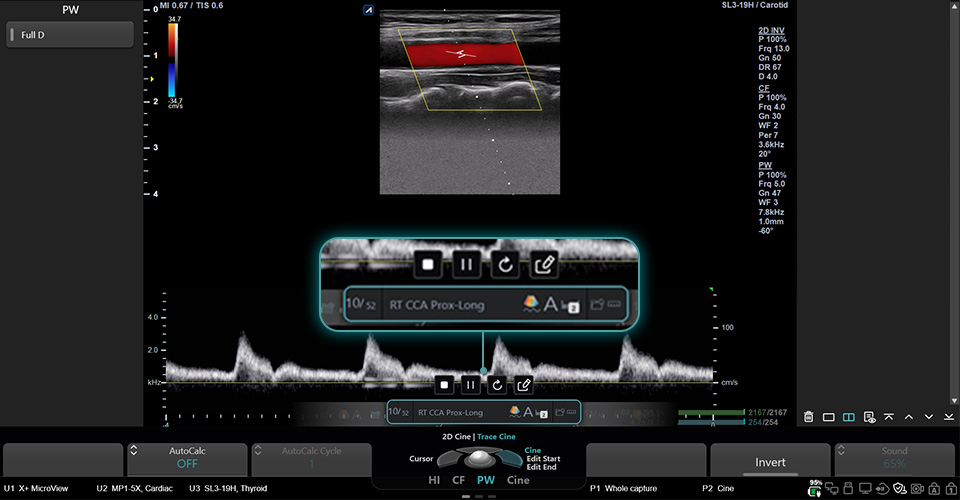

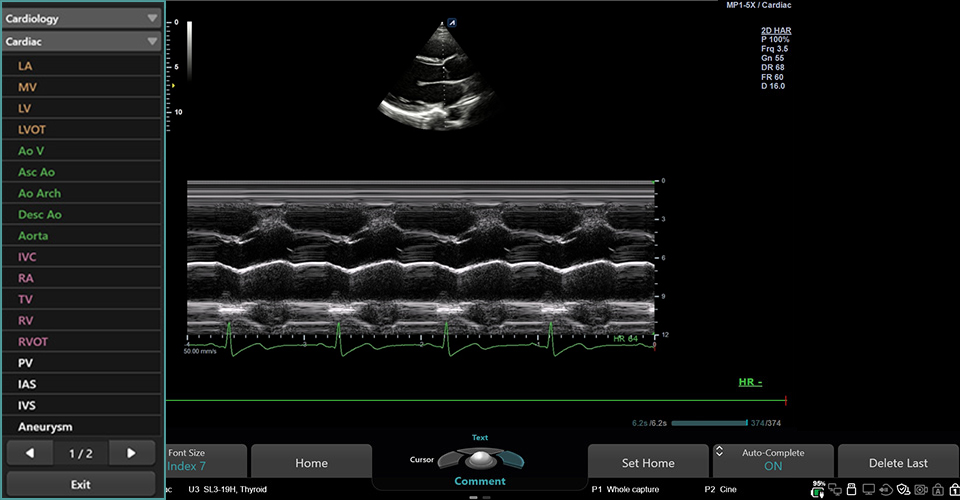

X+ Assistant

Keystrokes have been reduced by more than 50% compared to conventional use, reducing examination time. Optimal scanning protocols are registered according to application-specific guidelines and users can optimize.

X+ Compare

Users are able to import previously acquired images from a PACS or hard disk and compare with the current image in real-time scan and in E-view mode for reviewing.

Activate Versatility with
Quality and Performance

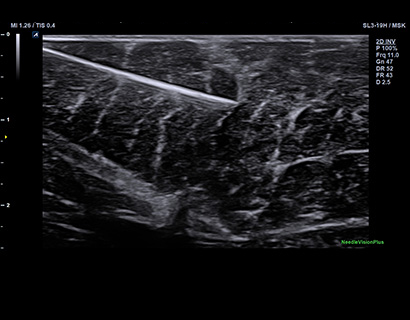

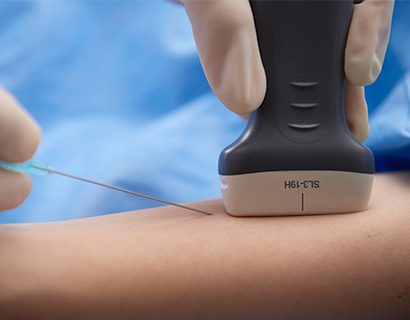

Needle Vision™

Using Beam Steering technology, this feature is useful in showing the shape and orientation of the needle. The needle can be viewed more clearly by adjusting the beam angle in three steps.

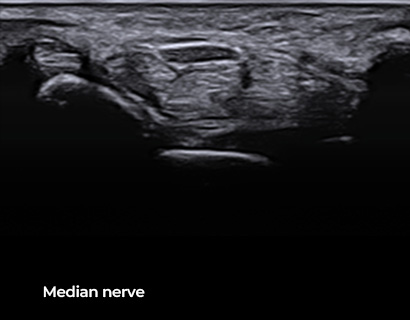

High quality image

Ultra-high frequency linear L10-25H and wide bandwidth SL3-19H transducer, allow rich image quality from surface to muscle, nerve and, deeper area.

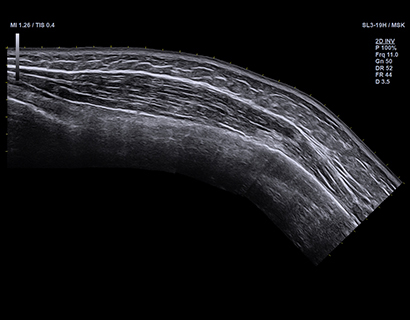

Panoramic Imaging

Panoramic Imaging offers a horizontal image with an extremely extended field of view.

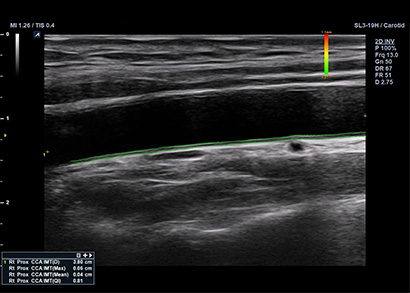

Auto IMT

When the user draws a line in the area where the carotid intima media thickness is to be measured, the thickness will be measured automatically and displayed on the screen.

Doppler image

The direction and velocity of blood flow are displayed in real time. The excellent frame rate and image quality of the X-CUBE i9 help accurate and prompt exam.

Seamless Transducer

Its durability is enhanced by using special material instead of rubber, which could be damaged by a needle and cracked during the scan. Thanks to the seamless mold, its easy to clean design may avoid cross contamination and infection.

High freq. Transducers

Ultra-high frequency linear transducer, L10-25H, allows superficial regions such as small saphenous vein and peroneal nerve to be displayed more clearly and accurately.

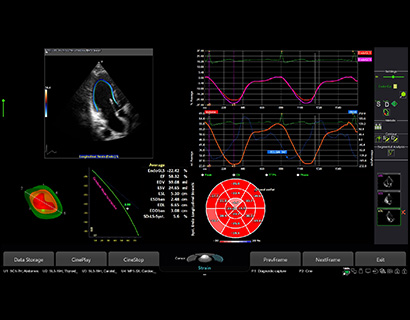

Auto-analysis package (CUBE Strain, Auto EF)

It is an automated measurement tool that evaluates the contractile function of the left ventricle. It automatically analyzes end diastolic volume(EDV), end-systolic volume(ESV), and ejection fraction(EF).

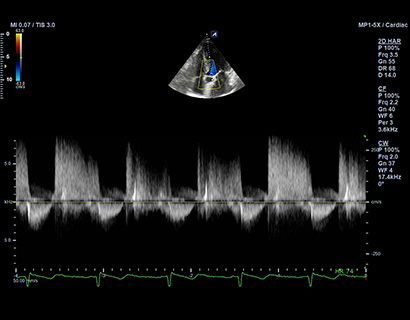

CW Doppler

Continuous Wave Doppler (CWD) mode allows you to view the velocity and direction of a blood flow at a certain position. As you move the Doppler cursor, images on the Doppler line appear by time order.

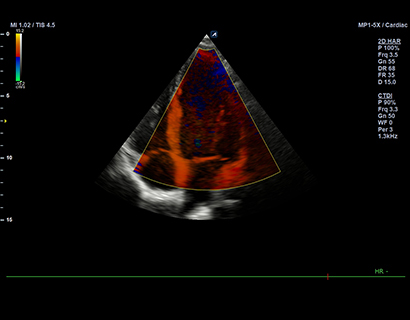

Tissue Doppler Imaging

Tissue Doppler Imaging (TDI) mode allows you to view the status of the myocardium by measuring the velocity of the tissue movement on the Doppler image.

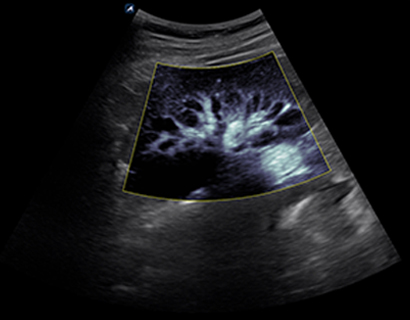

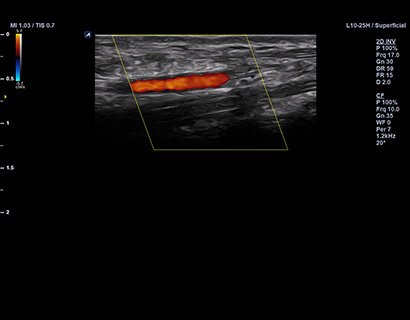

X+ MicroView

MicroView is the vascular imaging mode which displays micro blood flow. Users can observe the low speed blood flow of tiny blood vessel. This technology allows for accurate diagnosis by showing a low-velocity blood flow that has not been seen in the Color Doppler at a high frame rate.

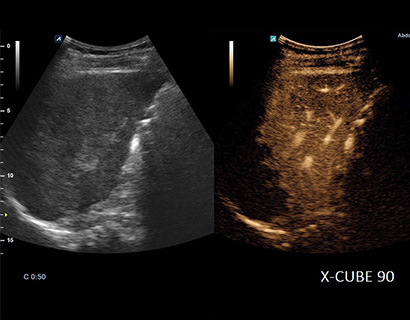

CEUS

This is a function to diagnose patients using various angiographic patterns that appear while a contrast medium, administered intravenously, diffuses in blood vessels and organ tissue.

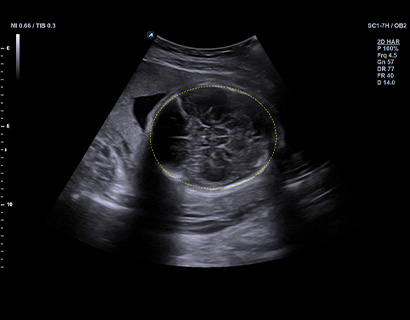

X+ Auto Biometry

When measuring Estimated Fetal Weight(EFW), the smart recognition algorithm allows you to automatically identify a structure of interest and measure HC, BPD, FL, AC and Humerus.

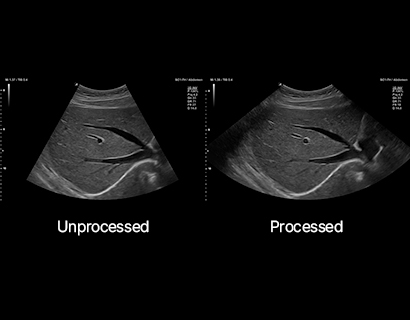

Wide FOV

FOV of up to 100 degrees are supports to see more of abdomen organs or bigger organ as well as fetus.

Clinical Image

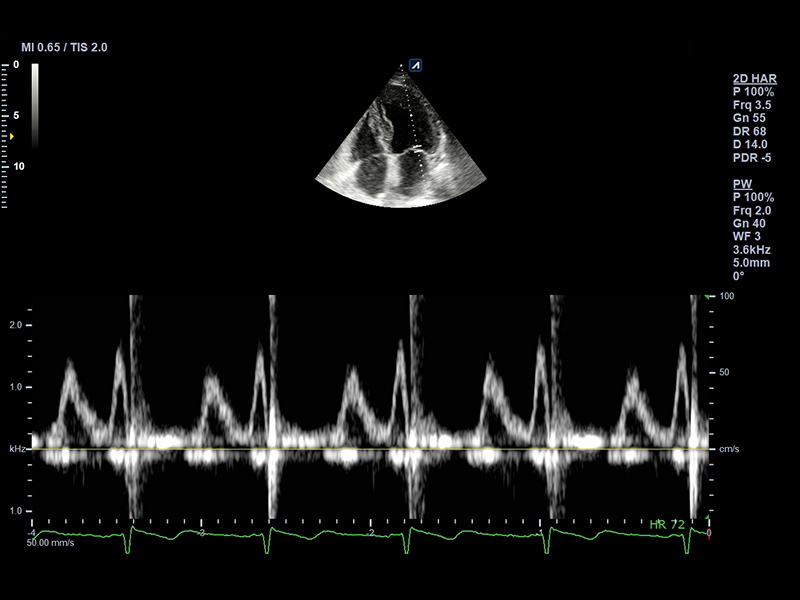

Apical view 4 chamber PW Mitral valve Diastolic function Mild Dysfunction
Apical view 4 chamber PW Mitral valve Diastolic function Mild Dysfunction

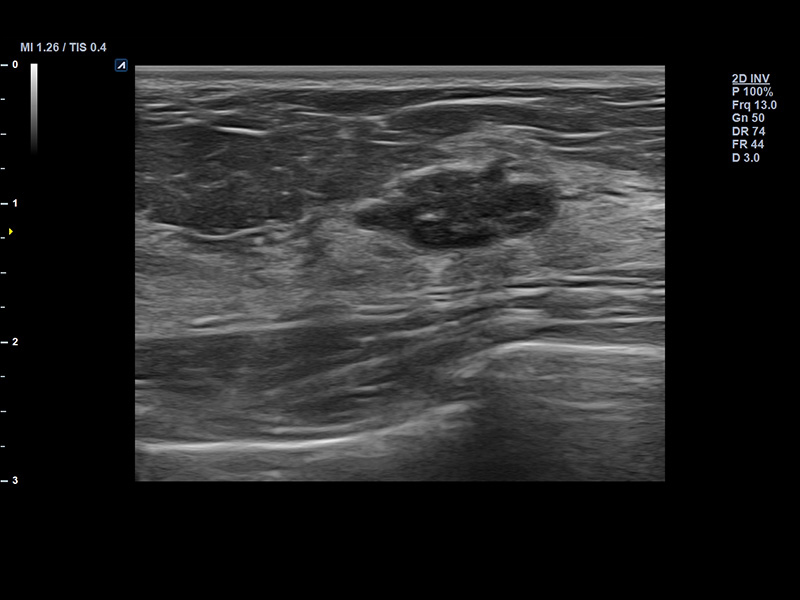

Breast 2D Fibroadenoma
Breast 2D Fibroadenoma

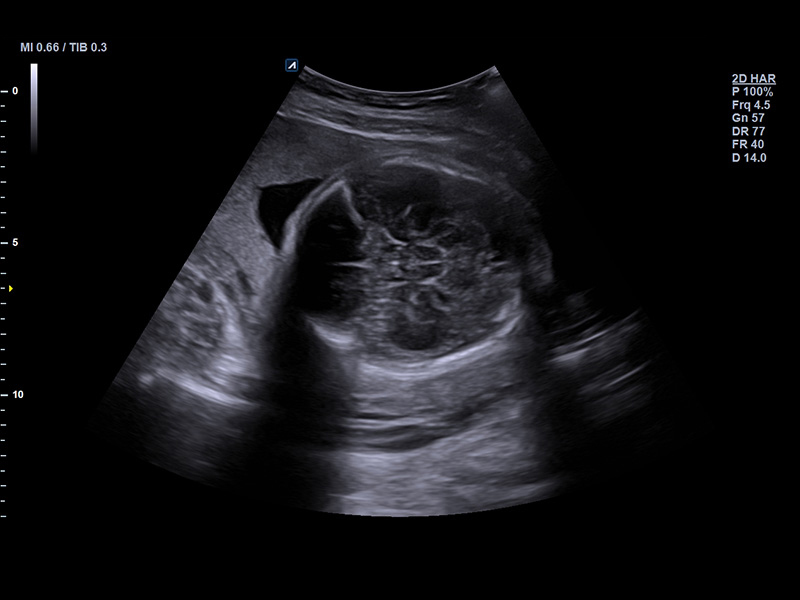

Fetal brain 2D Normal case
Fetal brain 2D Normal case

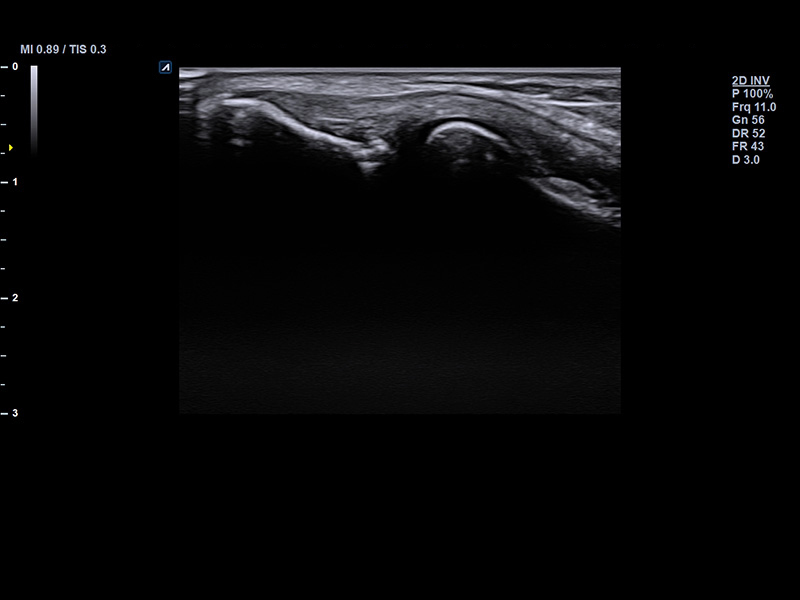

Finger 2D
Finger 2D

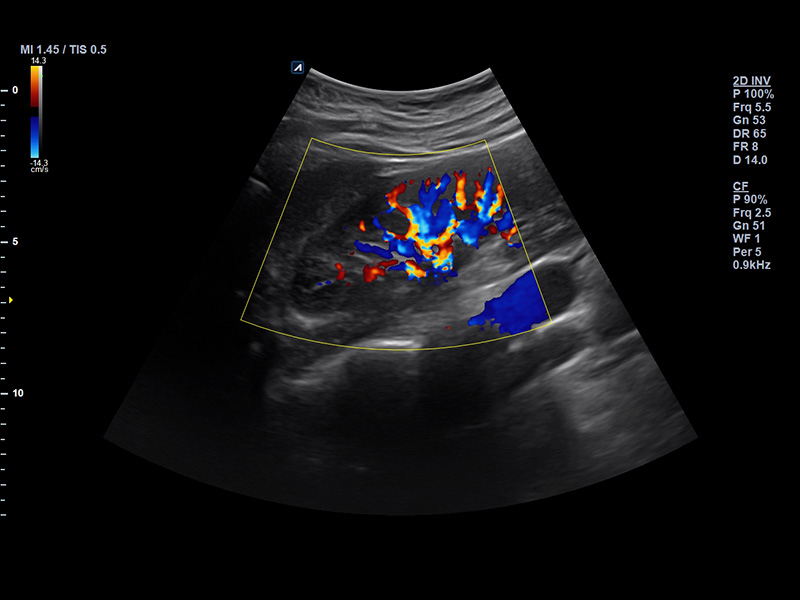

Kidney Color mode
Kidney Color mode

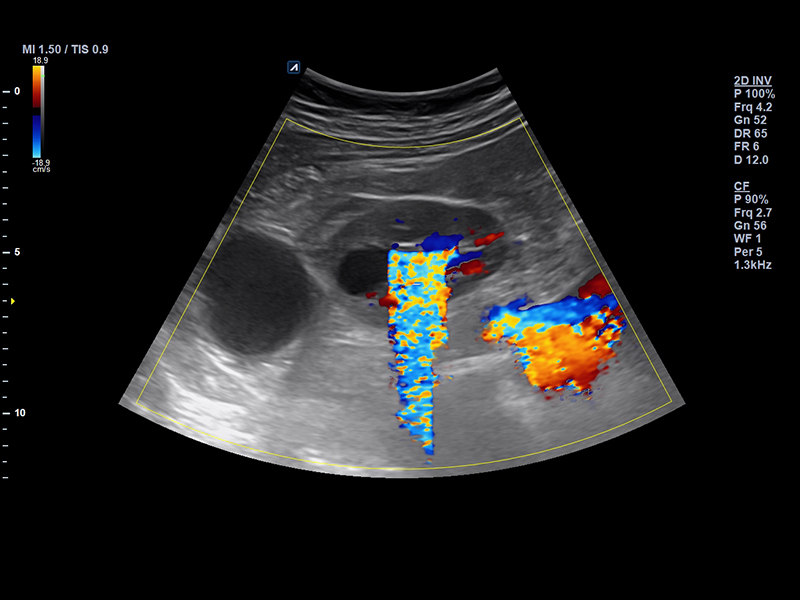

Kidney(Renal stone) Color mode Twinkle artifact
Kidney(Renal stone) Color mode Twinkle artifact

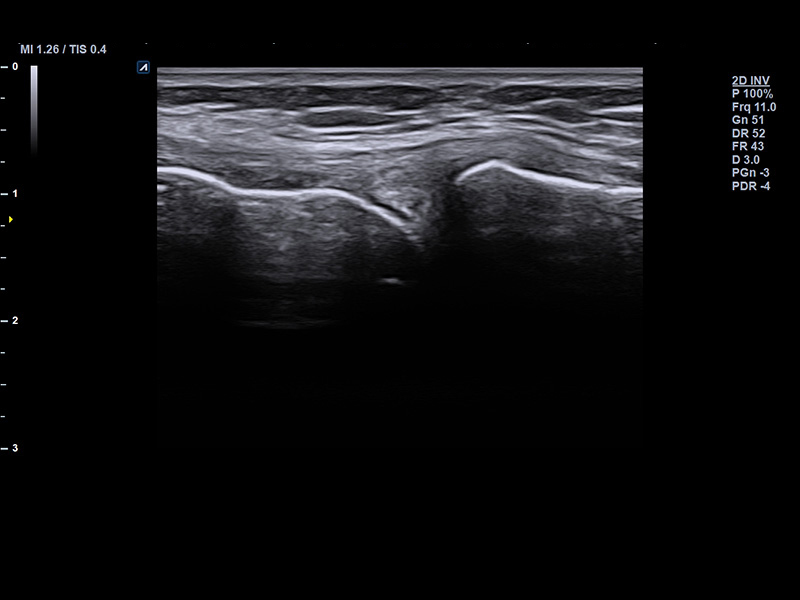

Knee meniscus 2D
Knee meniscus 2D

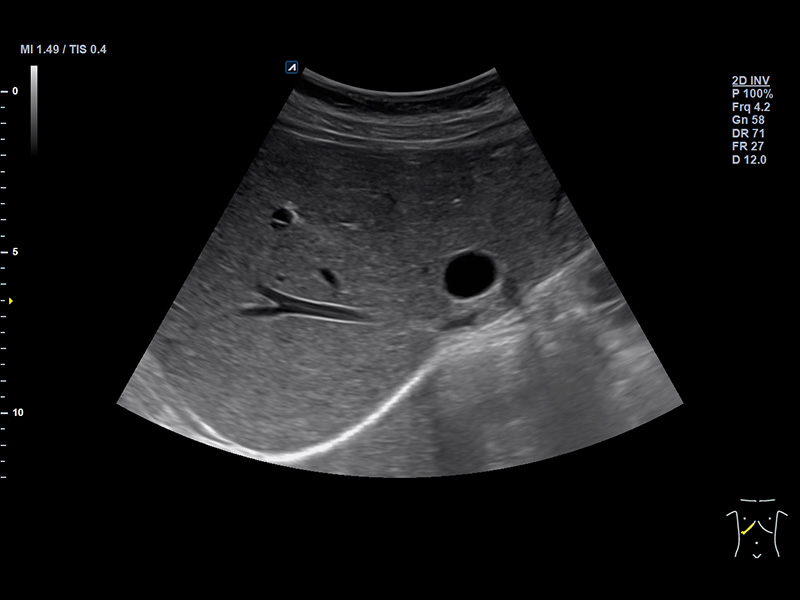

Liver 2D Liver cyst(Hepatic cyst)
Liver 2D Liver cyst(Hepatic cyst)

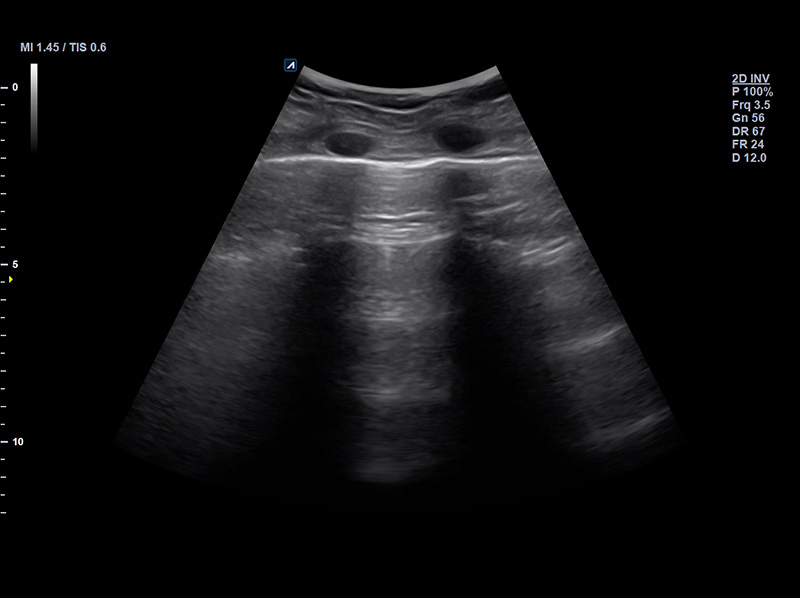

Lung A-line 2D Normal case
Lung A-line 2D Normal case

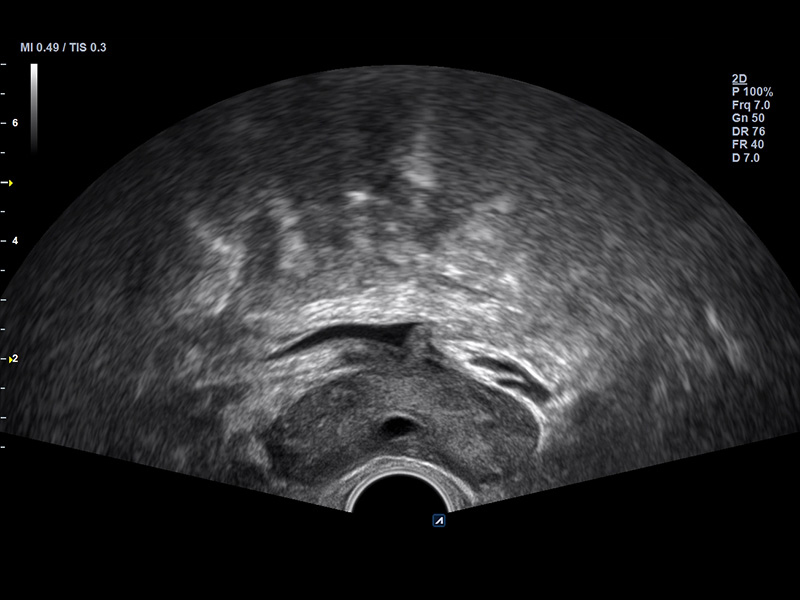

Prostate 2D Normal case
Prostate 2D Normal case
Shoulder supraspinatus 2D
Shoulder supraspinatus 2D

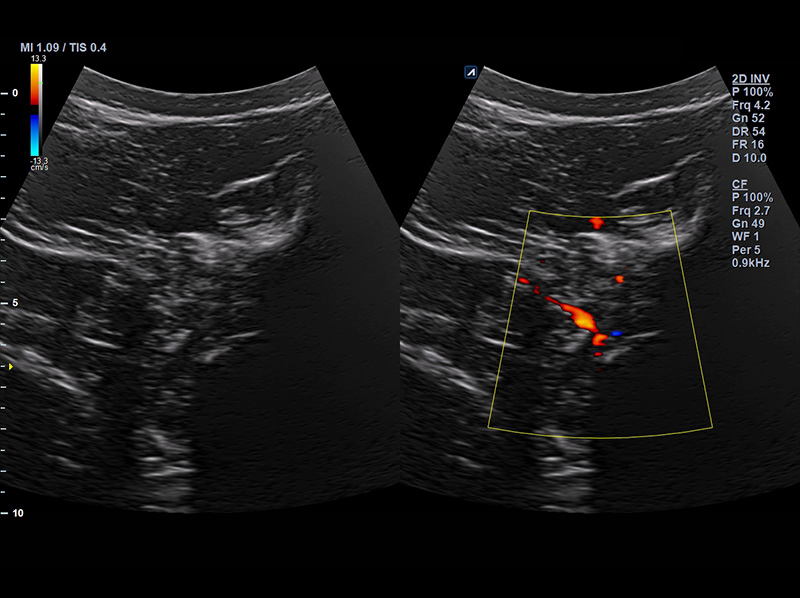

Spine Color mode
Spine Color mode

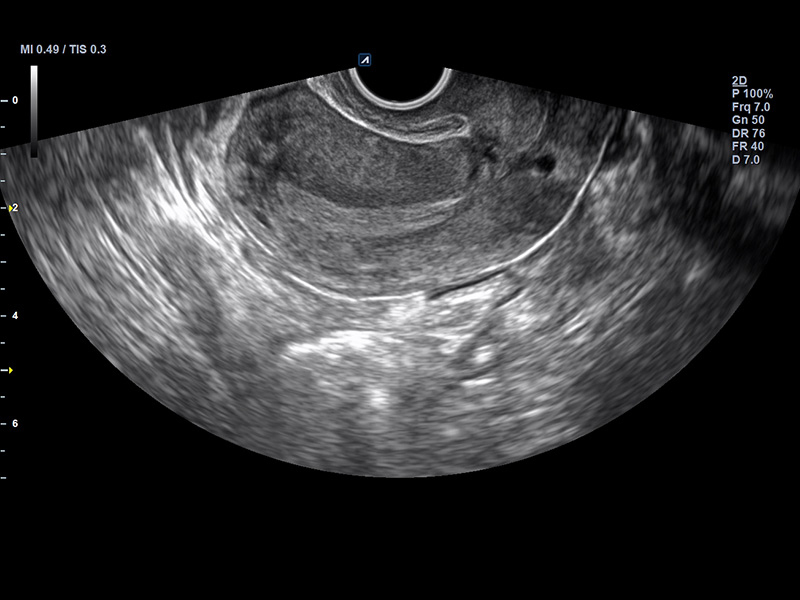

Uterus Longitudinal view 2D Normal pelvic ultrasound
Uterus Longitudinal view 2D Normal pelvic ultrasound

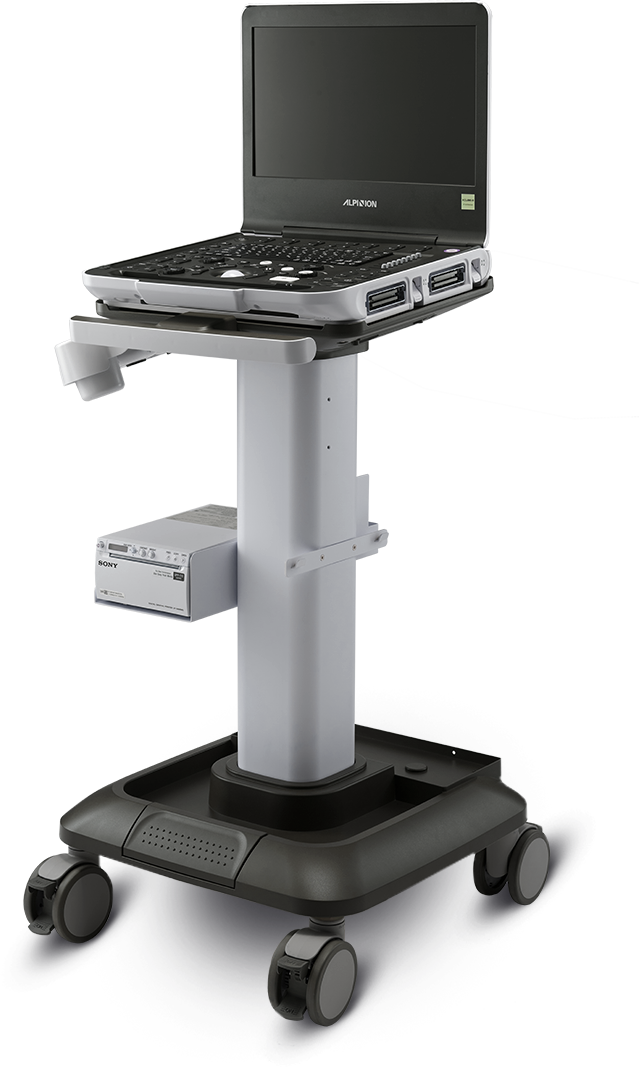

Design & Ergonomics

❶ Product Specification
  • 2 Transducer connectors (Second connector optional)
  • 2 Built-in Batteries (Second battery optional)
    Sleep mode: Max. 100 hrs.
    Continuous scan: Max. 60 min.
  • Fast System Boot-up
    From sleep mode: 15 sec. / From off mode: 62 sec.
  • 15.6 inch LCD monitor
  • Monitor tilting up to 180°
  • 6Kg (with 1 battery)
  • Dimension: 385(W) x 370(D) x 62.5~353(H) mm
  • 4 User Define Key
  • Control Panel Cover (Optional)
  • Smooth and silent gas lift cylinder
  • Easy adjustment of height: 848 ~ 998 mm
  • 2 transducer holders, 1 Gel holder
  • Weight: 22.5 kg
  • Safety product locks
  • Transducer cable management
  • 4 swivel wheel
  • Safety break locks
  • 3 transducer pouches included.

* The cart and carrying bag may be available for purchase separately.

  • Alpinion X-CUBE i9
  • Made in Korea
  • Two Years Warranty
